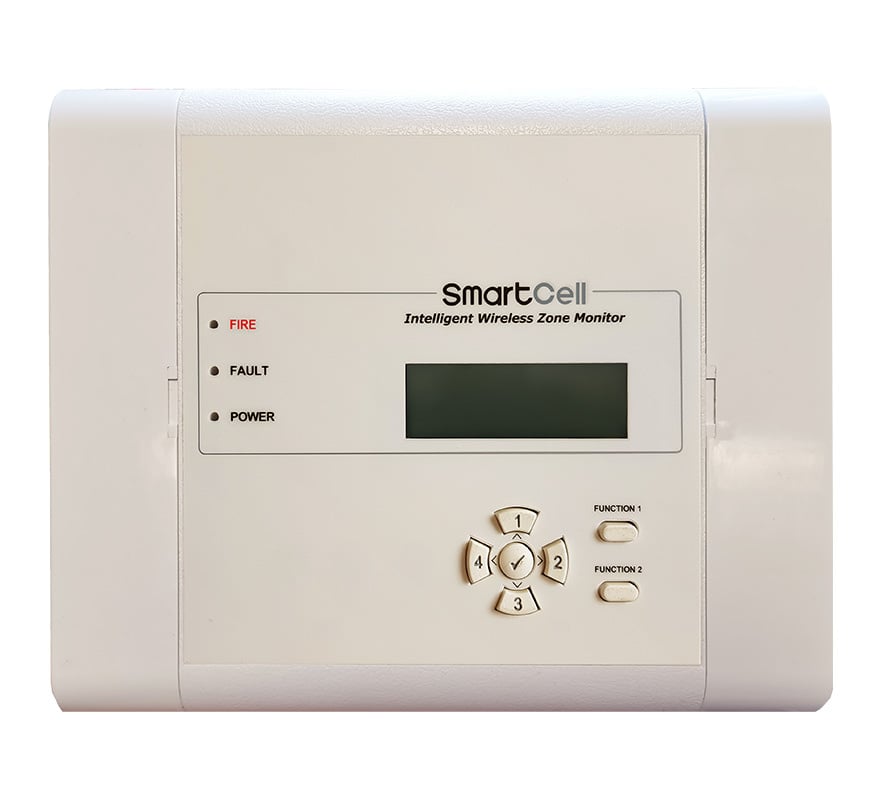

EMS SmartCell 230V Intelligent Wireless Zone Monitor (SC-13-1100-0001-99)

The EMS SmartCell Intelligent Wireless Zone Monitor (iWZM), 230 VAC version, part number SC-13-1100-0001-99, adds up to 16 SmartCell wireless devices to an existing conventional or addressable fire alarm system. On a conventional panel it connects to a dedicated zone and sounder circuit; on an addressable system it connects through its fire and fault inputs and two voltage-free fire outputs.

This version is mains powered with an integral power supply and standby battery; a 24 VDC version (SC-13-2100-0001-99) is also available.

Key features

• Universal connection to conventional and addressable fire control panels
• Supports up to 16 SmartCell wireless devices
• 80 character LCD display
• Compact enclosure, fully wireless to field devices
• Two voltage-free outputs rated 30 V at 1 A for addressable connection; fire and fault inputs with supplied resistor pack
• Includes PSU and standby battery

Technical specifications

• Part number: SC-13-1100-0001-99
• Mains supply: 220 to 240 VAC, 50 Hz, 0.3 A
• Current consumption: 0.030 A quiescent, 0.042 A alarm
• Standby battery: 1 x 6 V lead acid (6 V 5 Ah Ritar RT650 or 6 V 4 Ah Yuasa NP4-6)
• Standby time: 48 hours
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Maximum cable length to connected devices: 10 m
• Operating temperature: -5 to +45 °C; storage: 0 to +30 °C
• IP rating: IP30, Type A indoor use only
• Dimensions (W x H x D): 275 x 220 x 80 mm
• Weight: 1.55 kg
• Approvals: EN54-4, EN54-13, EN54-21 and EN54-25 (0359-CPR-00427)
