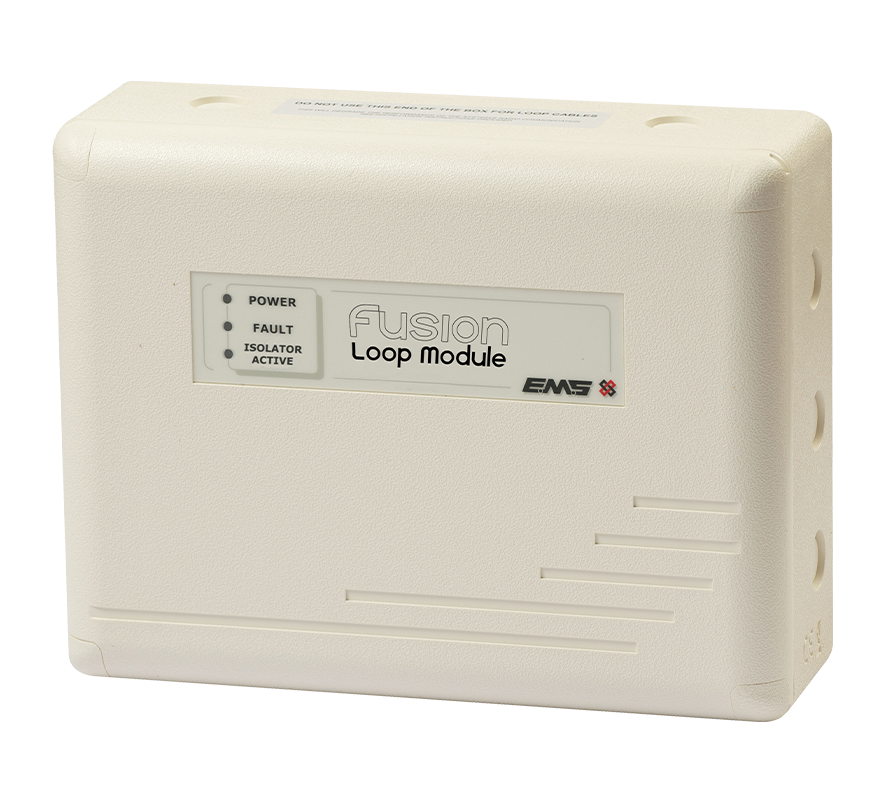

The EMS Fusion Radio Loop Module (RLM), part number FCX-532-001, connects to the loop of an XP95 protocol fire control panel and accommodates up to 31 wireless FireCell devices. It converts the wireless data into the wired loop protocol in both directions, so the control panel communicates with the wireless devices much as it would with wired loop devices. It includes a loop short-circuit isolator.
Requiring just 17 mA, up to five Fusion RLMs can be added per loop, subject to cable specification, making it well suited to hybrid systems and buildings where cabling is difficult.
Key features
- Up to 31 wireless FireCell devices per RLM
- Up to five RLMs per loop, subject to cable specification
- XP95 loop powered
- On-board short-circuit isolation
- Internal diversity aerials
- Dual band 868 MHz operation with 32 radio channel selection
- Third party EN certified
Technical specifications
- Part number: FCX-532-001
- Operating voltage: 17 to 28 VDC (loop powered)
- Current consumption: 17 mA typical, 91 mA max.
- Panel protocol: XP; signalling protocol: X
- Operating frequency: 868 MHz
- Output transmitter power: 14 dBm
- Radio range: up to 1250 m (clear line of sight)
- Operating temperature: -10 to 55 °C
- IP rating: IP54, indoor use only
- Dimensions (W x H x D): 270 x 205 x 85 mm
- Weight: 0.95 kg
- Approvals: EN54-17, EN54-18 and EN54-25 (0359-CPR-0022)
