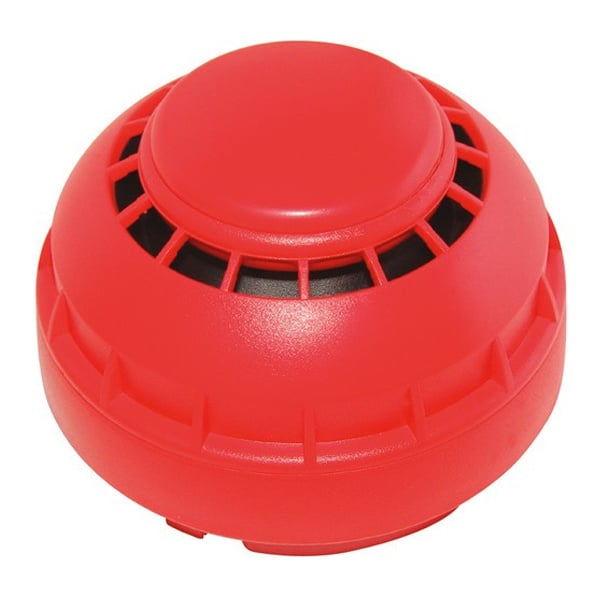

The Fike Twinflex Hatari (302-0001) is a red 2-wire, zone-powered sounder for Fike Twinflex fire alarm systems.
It gives audible indication when the system goes into alarm and can be installed on the same zone as Twinflex multipoint detectors and other Twinflex devices.
Key features
- Zone-powered sounder for Twinflex 2-wire systems
- Rotary volume control on the PCB (factory set to maximum)
- Built-in end-of-line function, enabled by DIL switch on the last device
- Twist-in fit to its base, clicking into a locked position
- Also available in white (302-0002)
Technical specifications
- Part number: 302-0001 (red)
- Standard: EN 54-3
- Dimensions: 105 mm diameter x 72 mm deep
- Sound output: 90+ dB(A) at 1 m anechoic (dual tone), maximum volume
- Voltage: 25.5 to 35 V DC (mains-powered panel); 20 to 26 V DC (battery-powered panel)
- Current: quiescent 92 µA; alarm at maximum volume 10 mA
- Loading: 6.0 SLU (V3 panel) / 36 DLU (Pro/Pro² panel)
- Operating temperature: -10°C to +50°C
- IP rating: IP21C
- Flammability: UL94-V2
