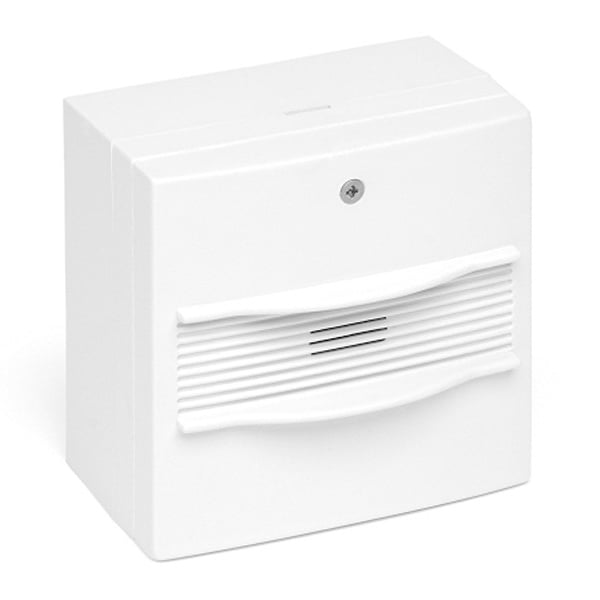

The Fike Twinflex Soundpoint in white (313-0022) is a 2-wire, zone-powered wall sounder for Fike's Twinflex fire alarm system. It wires onto the same zone as Twinflex Multipoint detectors and other Twinflex devices, so you don't need a separate sounder circuit.
Key features
- 85 dB wall sounder with three sound patterns
- High/low volume set by DIL switch
- Built-in end-of-line, enabled by DIL switch
- Mixes on the same zone as other Twinflex devices
- Supplied with back box and flush adaptor plate
- White finish (red version 313-0021 also available)
Technical specifications
- Sounder output: 85+ dB(A) high, 65+ dB(A) low
- Sound patterns: dual-tone UK evacuate (800/970 Hz), slow whoop (500–1200 Hz), dual-tone French warble (440/550 Hz)
- Voltage: 25.5 to 35 V DC (mains-powered panel); 20 to 26 V DC (battery-powered panel)
- Current: 185 µA quiescent; 14.5 mA sounder high; 12.6 mA sounder low
- Dimensions (W x H): 89 x 89 mm; surface depth 62 mm; flush protrusion 34 mm
- Operating temperature: -10°C to +50°C
- Flammability: UL94-V2; IP21C
- Standard: EN 54-3
