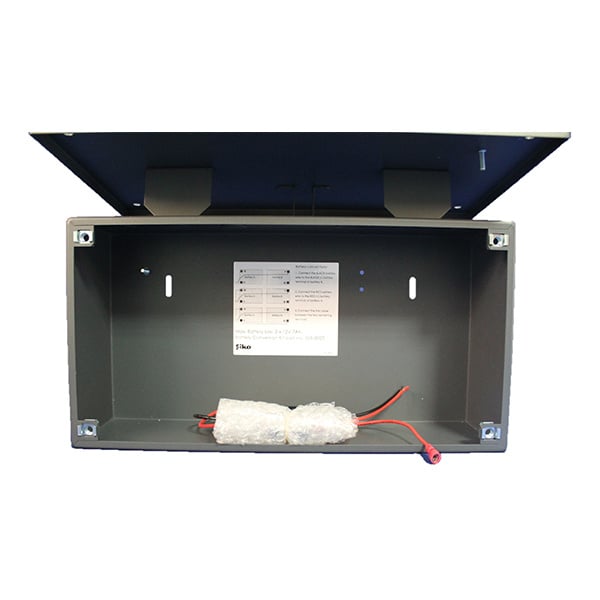

The Fike 505-0020 battery conversion kit is the external battery box for the Fike TwinflexPro² conventional fire alarm control panel.
The panel itself takes 2 x 12 V 3.2 Ah batteries; this box holds 2 x 7 Ah batteries for extended standby time. It mounts beneath the panel and links to it with the conduit coupling and battery lead harness supplied.
Key features
- Holds 2 x 7 Ah batteries for additional standby capacity of up to 72 hours
- Mounts directly beneath the TwinflexPro² panel
- Drill template, conduit bushes, coupling and battery lead harness included
- When fitted, the internal panel batteries and their leads are removed and replaced by the leads supplied
- Not suitable for a flush-mounted panel
Technical specifications
- Part number: 505-0020 (TwinflexPro² external battery box)
- Batteries required: 2 x 12 V 7.0 to 7.2 Ah sealed lead acid (not supplied); flame retardant (FR) types recommended
- Connection: harness to the panel battery terminals (BAT+ / BAT-)
What's in the box
- 1 x external battery box
- 1 x battery lead harness
- 2 x 20 mm conduit bushes
- 1 x 20 mm coupling
- 1 x drill template
