Fike UV/IR Flame Detector (Hydrocarbon Fires Only) (FIK-UV-IR-F-AS11)

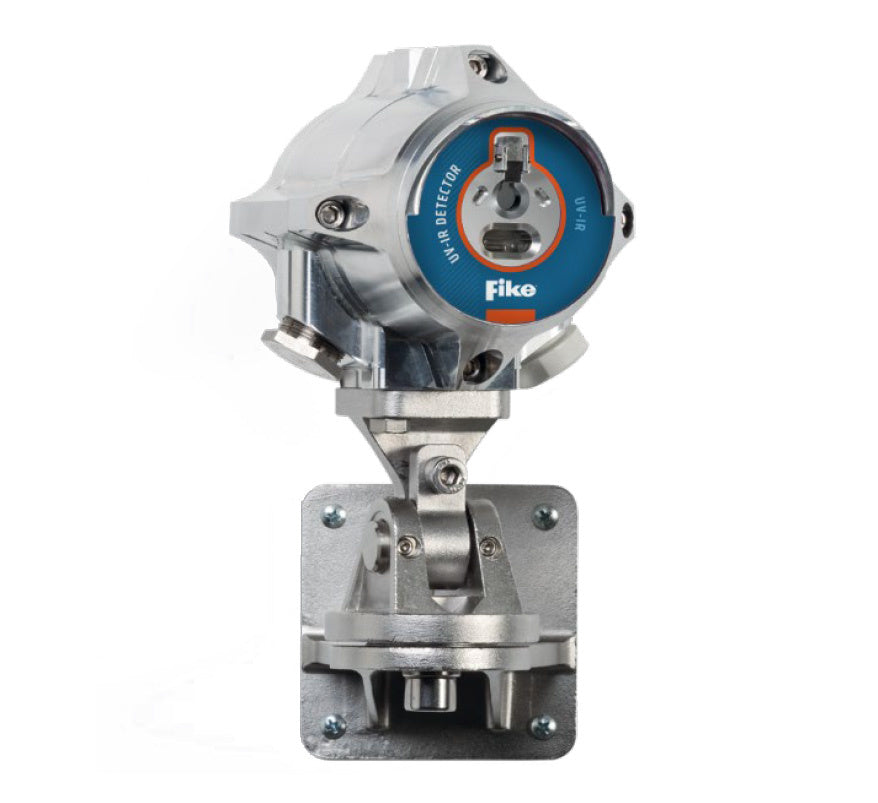

The Fike FIK-UV-IR-F-AS11 is a UV/IR optical flame detector for fast, reliable detection of hydrocarbon fires, both visible and non-visible, in all weather and light conditions. This version is for hydrocarbon fires only.

It detects slow-growing fires as well as sudden eruptions of fire, with relay, 0-20 mA and Modbus RS-485 outputs. This version has M25 conduit openings.

Key features

• UV/IR detection of hydrocarbon fires; IR spectral response 4.0 to 5.0 microns
• Ultra-fast mode detects fireballs or explosions within 5 ms
• Detects a 0.1 m² n-heptane pan fire at up to 30 m
• UV and IR warning levels on the 0-20 mA output when elevated radiation is detected
• High immunity to false alarms
• Data/event logger records alarms, faults and other events in non-volatile memory
• Built-in test (automatic and manual) of window cleanliness and overall detector operation
• Window heater to prevent condensation and icing
• Tilt mount (FIK-TMO-S01, ordered separately) can be fitted above or below the detector

Technical specifications

• Part number: FIK-UV-IR-F-AS11 (hydrocarbon fires only, M25 conduit openings)
• Detection: 5 ms for fast burst of explosion; 1.5 s for 0.1 m² n-heptane pan fire at 0 to 15 m
• Field of view (IR): 90° horizontal, 80° vertical
• Operating voltage: 24 VDC nominal (18 to 32 VDC)
• Current consumption: standby 120 mA; 180 mA with all systems operating (including window heater)
• Outputs: volt-free relays rated 2 A at 30 VDC (alarm normally open, fault normally closed); 0-20 mA stepped current output (3-wire and 4-wire, sink and source); Modbus RTU on RS-485
• Indication: tri-colour LED
• Conduit entries: 2 x M25 x 1.5
• Wiring: 12 to 20 AWG (2.5 to 0.35 mm²)
• Size: 140 x 90 x 90 mm
• Operating temperature: -55°C to +75°C (option to +85°C)
• Humidity: up to 99% RH, non-condensing
• Weight: detector (stainless steel) 3.0 kg; tilt mount 1.5 kg
• Ingress protection: IP66 and IP68; NEMA 4X and 6P
• Approvals: ATEX, IECEx and FM/FMC explosion proof; performance to ANSI FM 3260 and EN 54-10
• Warranty: 5 years
