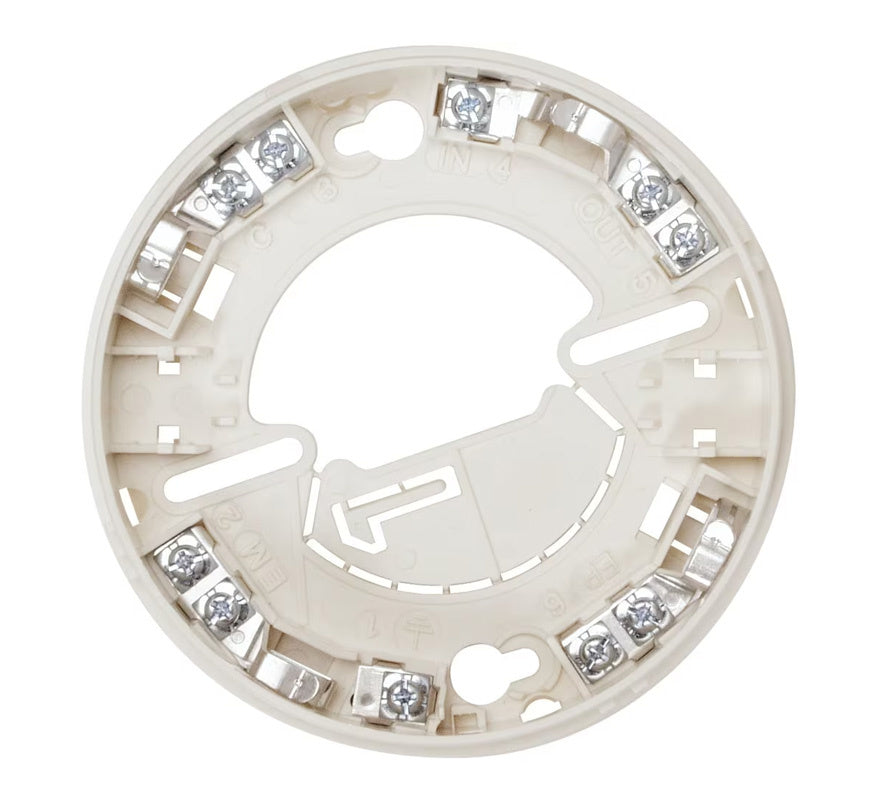

The GENT 805590 is the standard detector base for the Gent ES Detect conventional detector range. It has plenty of space for wiring, a slide-easy design and built-in detector extraction locking. Use the 805590-D base with diode where detector removal must be monitored.
Key features
- Easy installation with plenty of space for wire connections
- Slide-easy base with a neat design
- Detector extraction locking built into the base
- One-way-only fit
- Cable entry from the side or through the bottom plate
Technical specifications
- Part number: 805590
- Connection terminals: 0.6 mm to 2 mm²
- Application temperature: -20°C to 72°C
- Storage temperature: -25°C to 75°C
- Material: ABS; colour: white, similar to RAL 9010
- Weight: approx. 60 g
- Dimensions: Ø 117 mm, H 24 mm (62 mm with detector)
