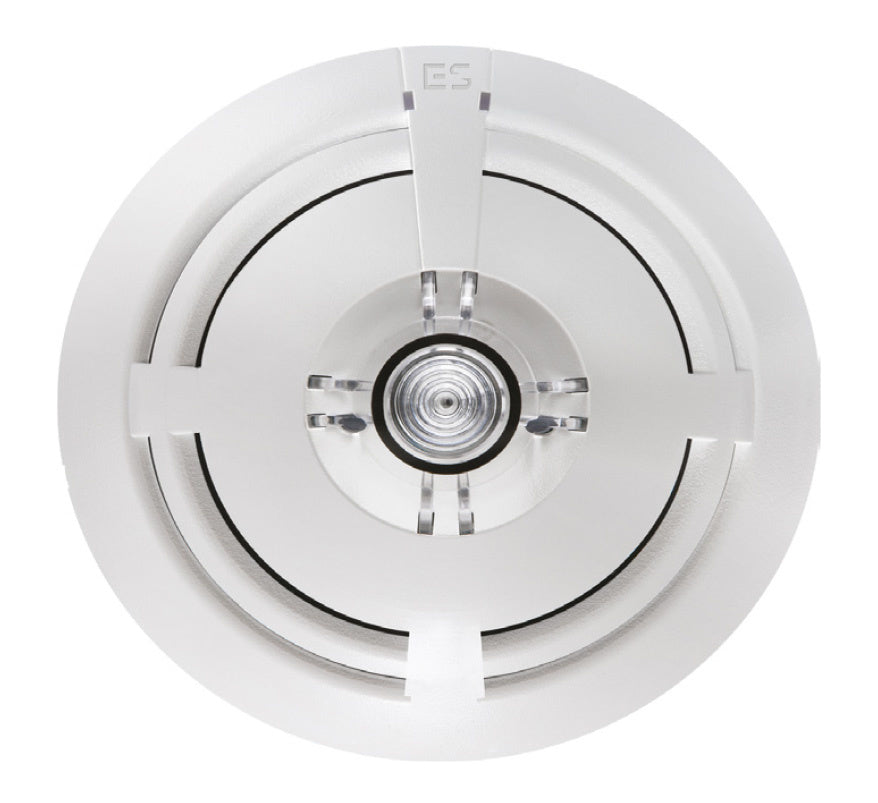

The GENT 800171 is an ES Detect conventional fixed-temperature heat detector (EN 54-5 Class A1S). It uses a fast semiconductor sensor to detect fires that produce a lot of heat, in areas where smoke detection is not suitable. The ES Detect range is approved for use with Gent Xenex conventional control panels, or with Vigilon via interface units.
Key features
- Fast semiconductor heat sensor
- Microprocessor-controlled detection
- Self-monitoring to maintain optimum performance throughout its life
- Compatible with the diode base (805590-D) to monitor detector removal
Technical specifications
- Part number: 800171
- Detector category: EN 54-5 A1S (fixed temperature)
- Typical application temperature: up to 50°C
- Operating voltage: 8 to 42 V DC
- Alarm current at 9 V DC: typ. 9 mA
- Air speed: 0 to 25.4 m/s
- Storage temperature: -25°C to 75°C; minimum operating temperature -20°C
- Air humidity: < 95%
- Type of protection: IP43 (with base and option)
- Material: ABS; colour: white, similar to RAL 9010
- Weight: approx. 110 g
- Dimensions: Ø 117 mm, H 49 mm (62 mm including base)
- Bases: 805590 standard base; 805590-D base with diode
