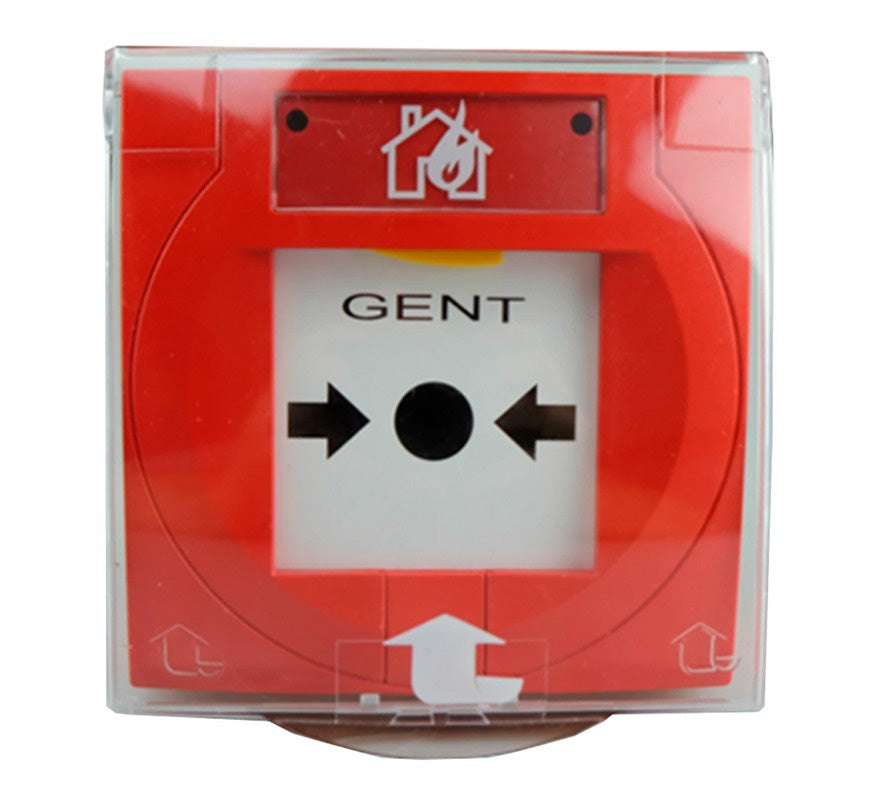

The GENT S4-34845 is an analogue addressable manual call point with a resettable element and a lift-up protective cover, for Gent Vigilon and Nano fire alarm systems. It is continuously monitored, so an activation is responded to in less than one second system-wide. It fits a standard installation back box, or the red surface back box (S4-34895), which is sold separately.
Key features
- Resettable operating element with lift-up protective cover
- Integral short-circuit isolator
- Up to 200 call points per loop
- Response to activation in less than one second system-wide
- Removable terminal block
- Surface or semi-flush mounting options
Technical specifications
- Order code: S4-34845
- Maximum quantity per loop: 200
- Operating temperature: -25°C to 70°C
- Ingress protection: IP43
- Relevant standards: EN 54 parts 11 and 17
- Approx. weight: 0.11 kg
- Device load factor: 1
- Related spares: S4-34890 resettable elements (pack of 10), S4-34892 protective covers (pack of 20), S4-34895 red surface back boxes (pack of 10)
