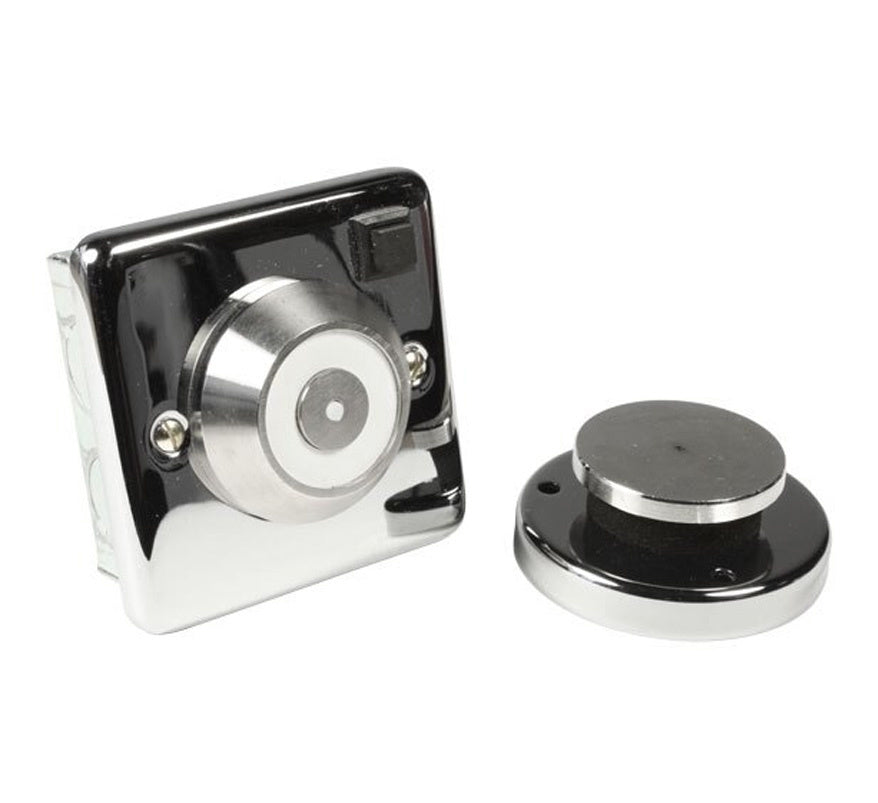

The Geofire Decorative (3-59-0302-C001) is a 230V AC wall-mounted electromagnetic fire door holder in a bright chrome finish. It holds fire doors open for convenient access and releases them to close when the fire alarm system removes power. Its high-quality metallic finish makes it particularly suitable for prestigious installations such as offices, hotels and conference centres.
The keeper plate is supplied with a matching finish. The magnet comes with a standard single gang electrical back box for flush mounting, and a surface mounting sleeve in a matching finish is available separately.
Key features
- Bright chrome finish with matching keeper plate
- 200N holding force with zero residual force
- Manual release switch
- Flush mounting on the supplied single gang back box, or surface mounting with the optional sleeve (two 20mm entry holes and blanking plugs)
- Approved to EN 1155 and CE marked under the Construction Products Regulation
Technical specifications
- Part number: 3-59-0302-C001
- Supply: 230V AC
- Holding force: 200N
- Residual force: zero
- Finish: bright chrome
- Mounting: flush (single gang back box supplied) or surface (optional sleeve)
- Approvals: EN 1155, CE marked
- Warranty: 12 months
