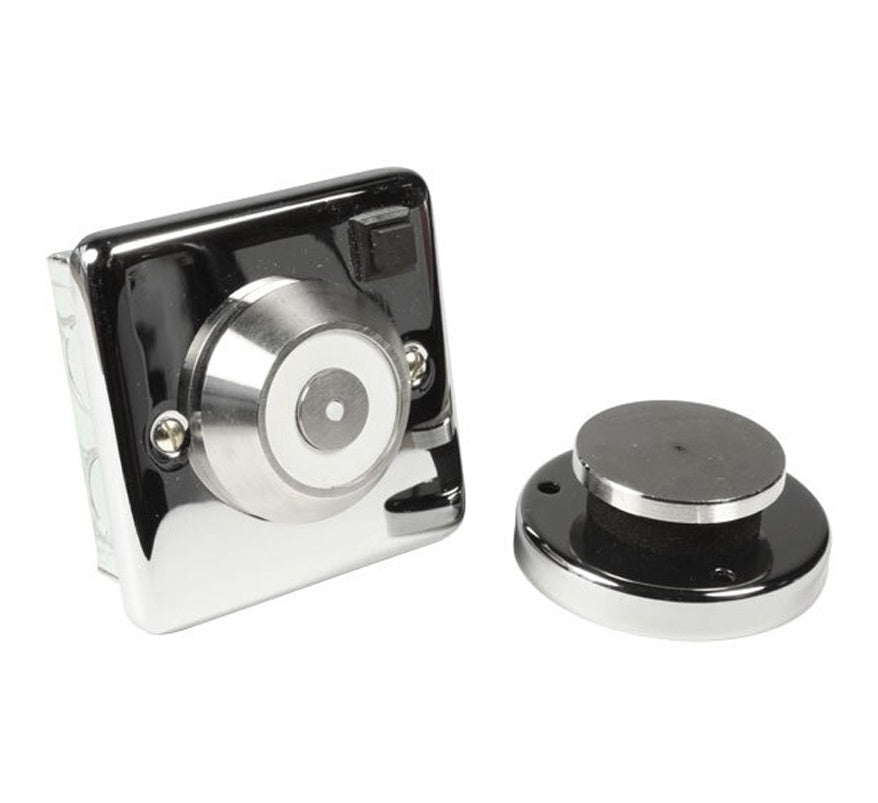

Geofire Decorative 24V Electromagnetic Fire Door Holder (Polished Chrome) (3-59-0301-C001)

The Geofire Decorative (3-59-0301-C001) is a 24V DC wall-mounted electromagnetic fire door holder in a bright chrome finish. It holds fire doors open for convenient access and releases them to close when the fire alarm system removes power. Its high-quality metallic finish makes it particularly suitable for prestigious installations such as offices, hotels and conference centres.

The keeper plate is supplied with a matching finish. The magnet comes with a standard single gang electrical back box for flush mounting, and a surface mounting sleeve in a matching finish is available separately.

Key features

• Bright chrome finish with matching keeper plate
• 200N holding force with zero residual force
• Manual release switch
• Flush mounting on the supplied single gang back box, or surface mounting with the optional sleeve (two 20mm entry holes and blanking plugs)
• Approved to EN 1155 and CE marked under the Construction Products Regulation

Technical specifications

• Part number: 3-59-0301-C001
• Supply: 24V DC
• Holding force: 200N
• Residual force: zero
• Finish: bright chrome
• Mounting: flush (single gang back box supplied) or surface (optional sleeve)
• Approvals: EN 1155, CE marked
• Warranty: 12 months
