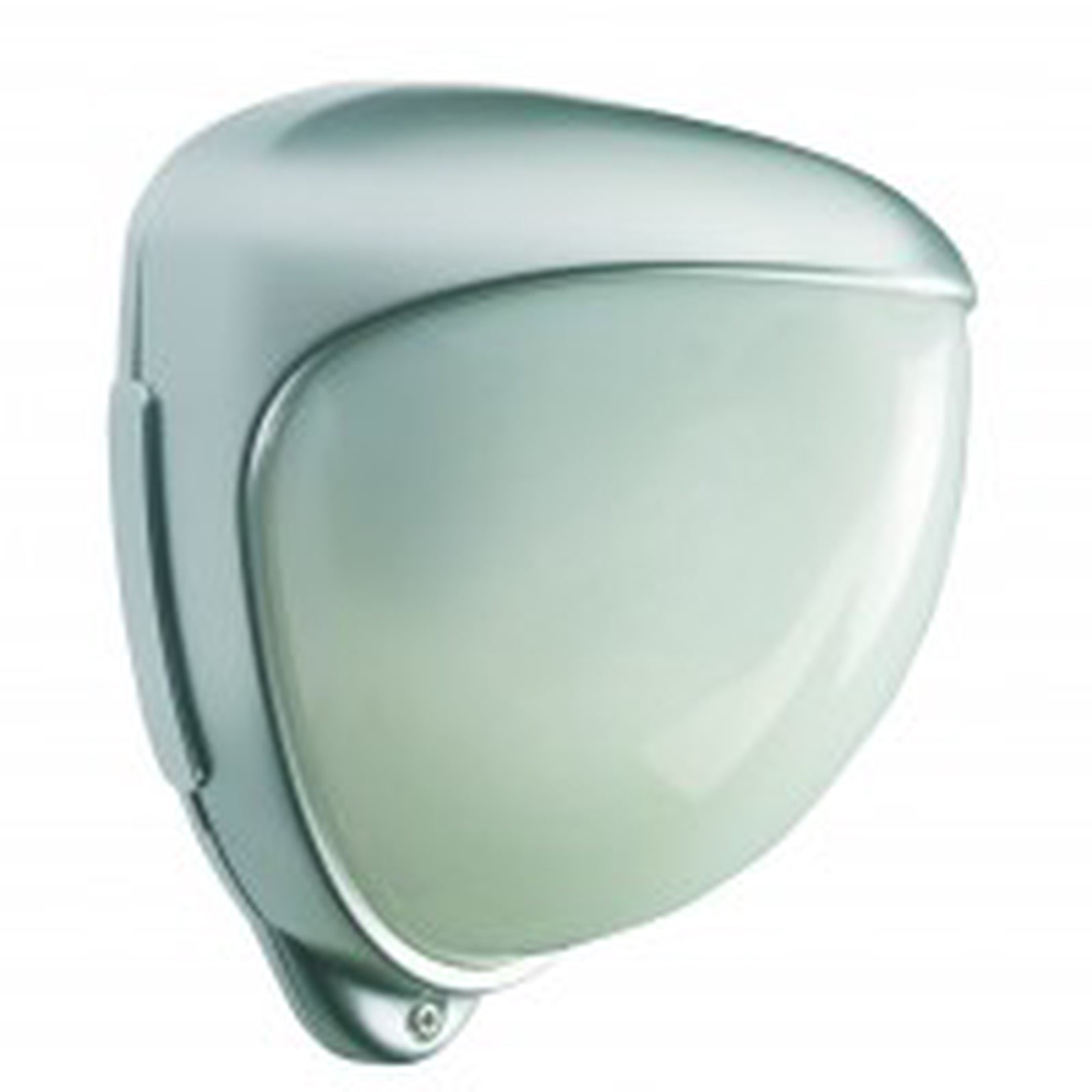

The GJD850R D-TECT Ricochet from GJD is a wireless, BS 8418 compliant quad PIR external detector with a 50 × 10 m detection pattern. It uses Texecom’s Ricochet mesh networking technology, so it pairs with Texecom Premier Elite control panels (firmware V2.08 and above) and can route its signals via other Ricochet devices, with the network self-healing if a link weakens.
Key features
- Texecom Ricochet mesh wireless (868MHz)
- Quad PIR detection module
- IP65 fully tampered housing with discreet internal antenna
- Front and rear tamper switches (case open and removal from wall)
- Runs on 2 × CR123 3V batteries
Technical specifications
-
Product code: GJD850R
-
Detection range: 50 × 10 m
-
Radio transmission range: 150 m line of sight
-
Frequency: 868MHz
-
Adjustment: 180° pan, 90° tilt
-
Mounting height: Up to 4 m, optimum 3 m
-
Pulse count: 1–2
-
Power: 2 × CR123 3V batteries (not included)
-
Housing: High impact ABS, IP65
-
Compatibility: Texecom Premier Elite panels with firmware V2.08 or above
Batteries not included.
