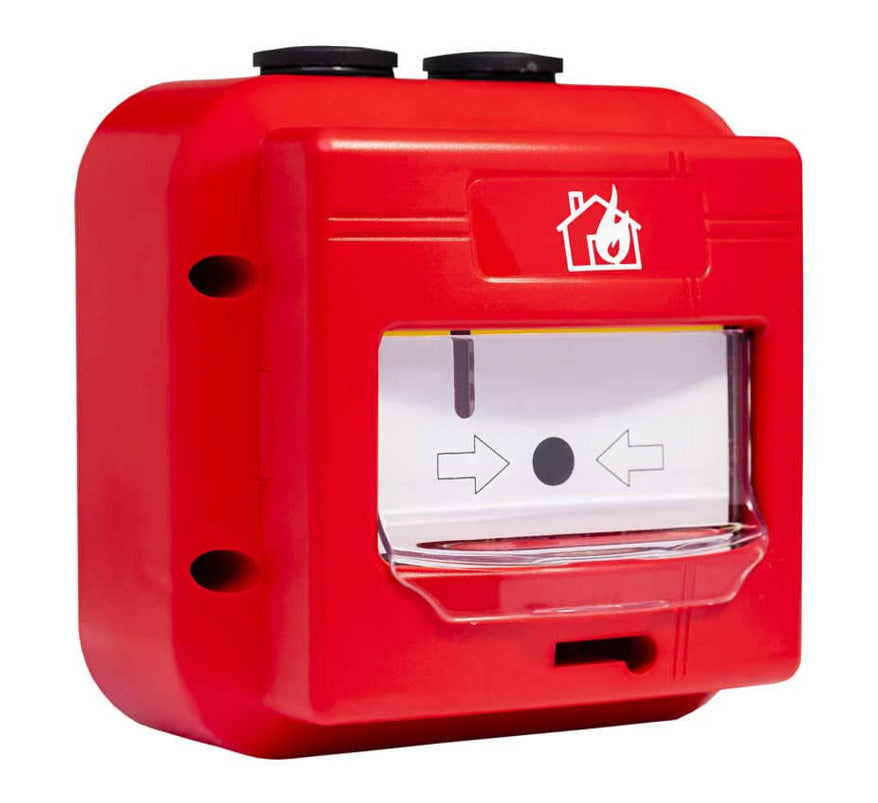

The Global Fire GFE-MCPE-AI-IP67 is an IP67 rated analogue addressable manual call point for outdoor use, with a loop short circuit isolator fitted as standard. It is designed and manufactured to EN54-11 and is compatible with all Global Fire Equipment (GFE) addressable control panels. Its glass-free resettable element mimics the feel of breaking glass, suiting oil rigs, ships, factories and wash-down areas that are sensitive to broken glass.
Key features
- Analogue addressable manual call point to EN54-11 (certificate 1328-CPR-0376)
- Loop short circuit isolator supplied as standard
- IP67 rated for outdoor and harsh environments
- Typical response time in alarm of approximately one second
- Address up to 125, set with an eight-way DIL switch
- Bi-colour LED: flashes green when interrogated by the panel, lit red in alarm
- Hinged protective flap: two actions are needed to activate
- Warning flag drops into view when operated; reset with a key
Technical specifications
- Operating voltage: 20 to 30V DC
- Quiescent current: 650µA; alarm current: 3.5mA
- Operating temperature: -10°C to +55°C; storage -30°C to +60°C
- Protection: IP67, Type A, outdoor use
- Max humidity: 95% RH non-condensing @ 40°C
- Cable size: 0.5 to 1.5mm²
- Case: red, ABS and clear PC, flame retardant 94 V0
- Dimensions: 111.9 x 111.9 x 81.3mm
- Weight: 262g including back box and fixings
