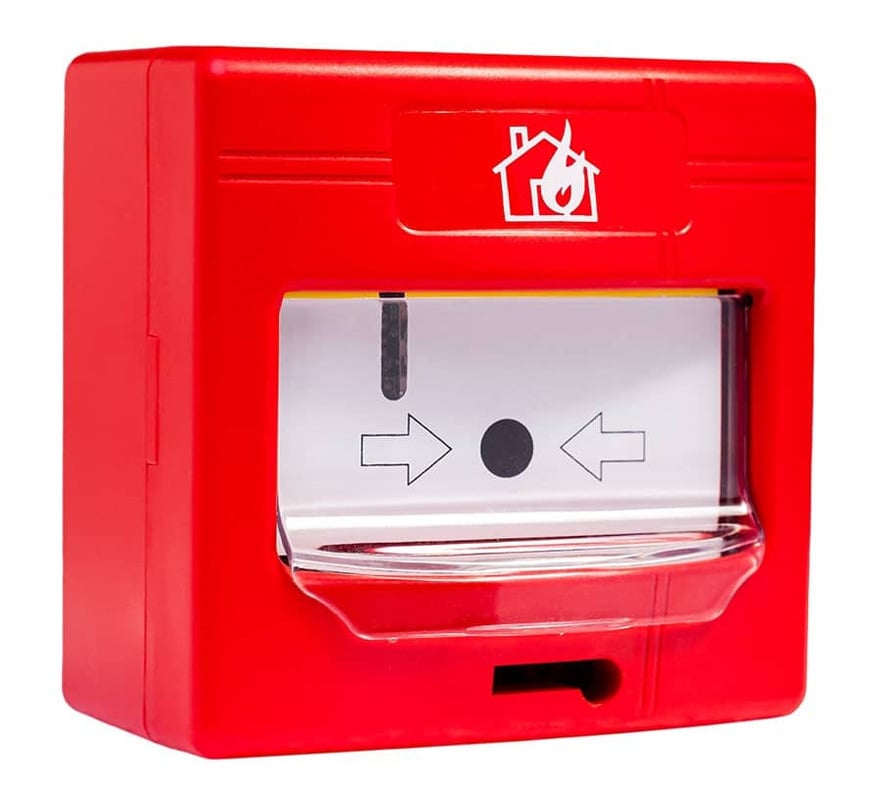

The Global Fire GFE-MCPE-AI is an analogue addressable manual call point with a built-in loop isolator, designed and manufactured to EN54-11 and compatible with all Global Fire Equipment (GFE) addressable control panels. Its enhanced communications give a typical alarm response time of about one second, depending on the number of call points on the loop. It comes with a hinged protective flap and can be surface or flush mounted.
Key features
- Analogue addressable manual call point to EN54-11, with loop isolator (certificate 1328-CPR-0375)
- Typical response time in alarm of approximately one second
- Address up to 125, set with an eight-way DIL switch
- Bi-colour LED flashes green when polled by the panel; the panel lights it red to confirm the alarm has been received
- Hinged protective flap: two actions are needed to activate, reducing accidental and malicious activations
- Resettable element, reset with the supplied key; surface or flush mounting
Technical specifications
- Operating voltage: 20 to 30V DC
- Quiescent current: 500µA; alarm current: 3.5mA
- Operating temperature: -10°C to +55°C; storage -30°C to +60°C
- Protection: IP24D, Type A, indoor use
- Max humidity: 95% RH non-condensing @ 40°C
- Cable size: 0.5 to 1.5mm²
- Case: red, ABS and clear PC, flame retardant 94 V0
- Dimensions: surface mounted 92.6 x 92.6 x 60.1mm; flush mounted 92.6 x 92.6 x 27.8mm
- Weight: 152g including back box and fixings
