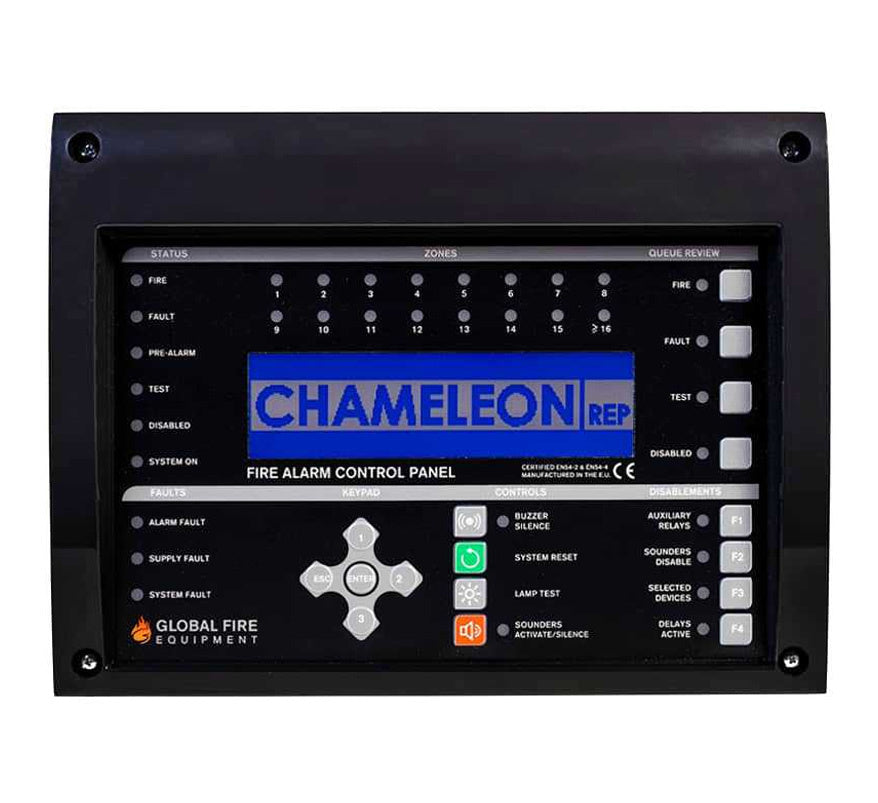

The Global Fire Equipment CHAMELEON REP is a system repeater for a Chameleon network of GFE addressable fire panels. It works as an addressed network panel without loops, and it processes and logs all system information. That gives you full control of a networked system from another location. This listing is the black version (CHAMELEON-REPBLK) and includes an RS422 network card.
It works with the Chameleon panel range: G-One, GEKKO, OCTO+ and NODE+. The CHAMELEON REP has no batteries of its own, so it needs an external power supply.
Key features
- Full system repeater for Chameleon networks: G-One, GEKKO, OCTO+ and NODE+ panels
- Supports RS422, fibre optic or TCP/IP network interfaces
- Global event log of 10,000 events
- Graphical backlit LCD, 240 x 64 pixels, with support for custom characters and multiple languages
- Cause-and-effect and site configuration can be uploaded or downloaded with CHAMELEON CONNECTOR software and broadcast to networked panels
- Needs an external power supply (no battery management)
Technical specifications
- Primary supply: 28.5 V DC nominal (max.)
- Quiescent current: 65 mA
- Operating/storage temperature: -10°C to 50°C
- Humidity: max. 85% RH non-condensing
- Ingress protection / material: IP30 / ABS
- Dimensions: 256 (L) x 194 (H) x 75 (W) mm
- Weight: 760 g
