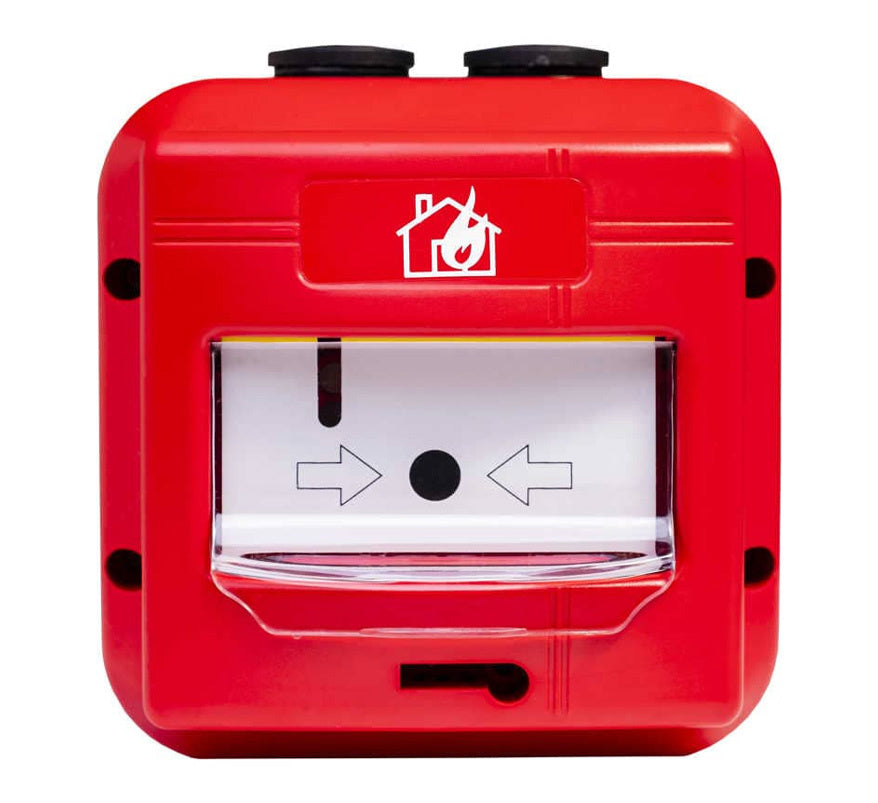

The Global Fire GFE-MCPE-C-IP67 is a red, IP67 rated conventional manual call point for outdoor use, designed and manufactured to EN54-11 and compatible with all Global Fire Equipment (GFE) conventional control panels. Its glass-free resettable element mimics the feel of breaking glass, making it well suited to harsh environments such as oil rigs, ships, factories and wash-down areas that are sensitive to broken glass.
Key features
- Conventional manual call point to EN54-11 (certificate 1328-CPR-0373)
- IP67 rated for outdoor and harsh environments
- Hinged protective flap: two actions are needed to activate, reducing accidental and malicious activations
- Bi-colour LED: flashes green in normal operation, lit red in alarm
- Resettable element, reset with the supplied key after activation
- Warning flag drops into view when operated, so the activated call point is easy to identify
Technical specifications
- Operating voltage: 25V DC (+5/-15V)
- Quiescent current: 200µA
- Alarm current: 50mA @ 24V DC nominal (alarm resistance 470 ohms max)
- Operating temperature: -10°C to +55°C; storage -30°C to +60°C
- Protection: IP67, Type A, outdoor use
- Max humidity: 95% RH non-condensing @ 40°C
- Cable size: 0.5 to 1.5mm²
- Case material: ABS and clear PC, flame retardant 94 V0
- Dimensions: 111.9 x 111.9 x 81.3mm
- Weight: 262g including back box and fixings
