Global Fire G-ONE 1 Loop Fire Control Panel - Non Expandable (Black) (G-1BLK)

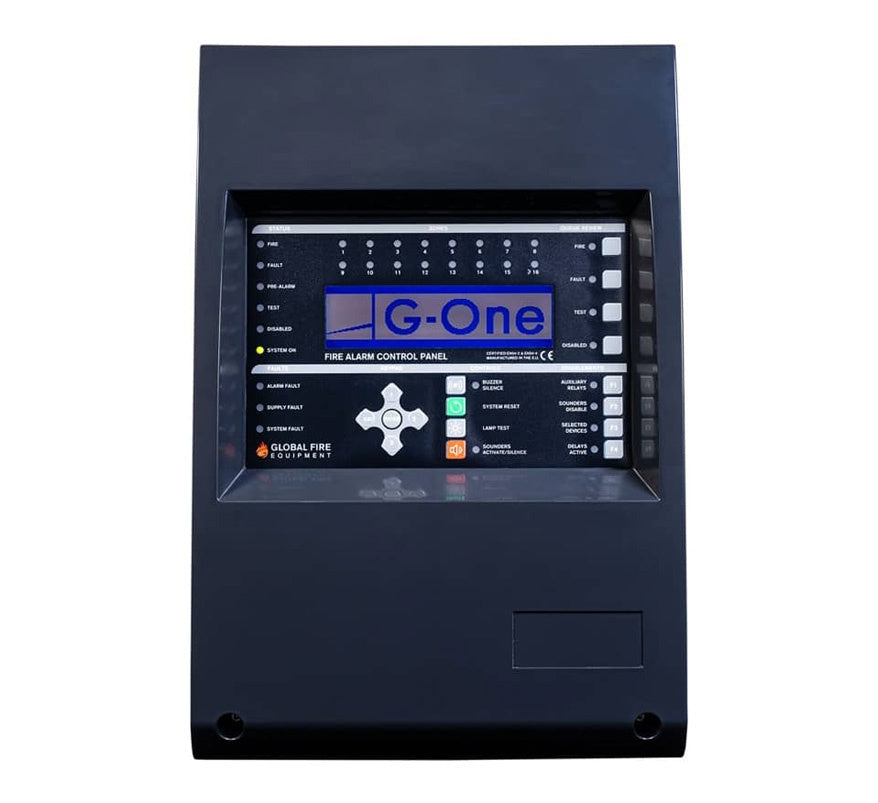

The Global Fire Equipment G-One is a single-loop analogue addressable fire alarm control panel. It is fixed at one loop and cannot be expanded. This listing is the dark (black) finish version, G-1BLK. It is CPR certified to EN 54-2 and EN 54-4 and suits single-loop sites such as offices, restaurants, shops and schools.

The panel works with the ZEOS, GFE and Apollo digital analogue addressable protocols and with all GFE addressable ancillary modules. Its Chameleon peer-to-peer networking lets it join up to 32 GFE panels.

Key features

• 900 mA single-loop addressable panel, 250 devices per loop (125 address limit)
• Network up to 32 G-One, GEKKO, OCTO+ and NODE+ panels; repeaters via RS422, fibre optic or TCP/IP
• Compatible with ZEOS, GFE and Apollo digital analogue addressable protocols
• Up to 95 VULCAN 2 addressable ultra-low-current base sounders per loop (32 address limit)
• Full self-addressing device support and automatic self-learn facility
• 384 programmable network zones, 512 alarm (sounder) groups and 512 I/O groups; 16 integrated programmable fire zone LEDs
• 2 fire relays (change-over), 1 fault relay (NC) and 2 programmable conventional alarm outputs
• SMS and email notification via the TCP IP-WEB interface
• Programming via integrated keypad or USB loader PC software; multiple menu languages
• Surface or recessed mounting

Technical specifications

• Mains supply: 90 V AC to 230 V AC
• Primary DC supply: 28.5 V DC at 2.4 A max.
• Secondary supply: 21.6 V min. to 27.2 V DC max.; battery charger 27.5 V DC
• Batteries: standard box 2 x 12 V 7 Ah; deep box 2 x 12 V 12 Ah
• Quiescent current (no devices): 52 mA
• Auxiliary power output: 2 x 24 V DC 300 mA / 1 x 24 V switched output
• Loop output current: 900 mA alarm peak / 165 mA quiescent
• Loop topology: Class A (loop) or Class B (radial)
• Loop cable: fire resistant 2 x 1.5 mm² (max. 1200 m) or 2 x 2.5 mm² (max. 2000 m)
• Conventional sounder circuits: 500 mA for circuits A + B
• Relays: rated 2 A at 30 V DC / 0.5 A at 120 V AC / 0.25 A at 240 V AC resistive
• Display: high-contrast blue backlit graphical LCD, 240 x 64 pixels
• BMS outputs: ODYSSEY, TCP IP-WEB, Modbus RTU, ESPA 4.4.4; USB type B software connection
• Event log: 10,000 events
• Operating/storage temperature: -10°C to +55°C; humidity max. 85% RH non-condensing
• Ingress protection / material: IP30 / ABS
• Dimensions: standard box 273 (L) x 404 (H) x 107 (W) mm; deep box 273 x 404 x 142 mm
• Weight: 1.6 kg (without batteries)
• Certification: EN 54-2 and EN 54-4 (1328-CPR-0811)
