GST DI-9300E Addressable Single Input Module
£29.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Accepts normally open (default) or normally closed contacts
- Electronically addressed; address and input mode set in the field with the P-9910B handheld programmer
- Built-in microprocessor and AD sampling technology
- Wall or 35mm DIN-rail mounting
- Red feedback LED and yellow fault LED
- EN 54-18:2005; CE and LPCB certified; WEEE and RoHS compliant
Frequently bought together
Product details

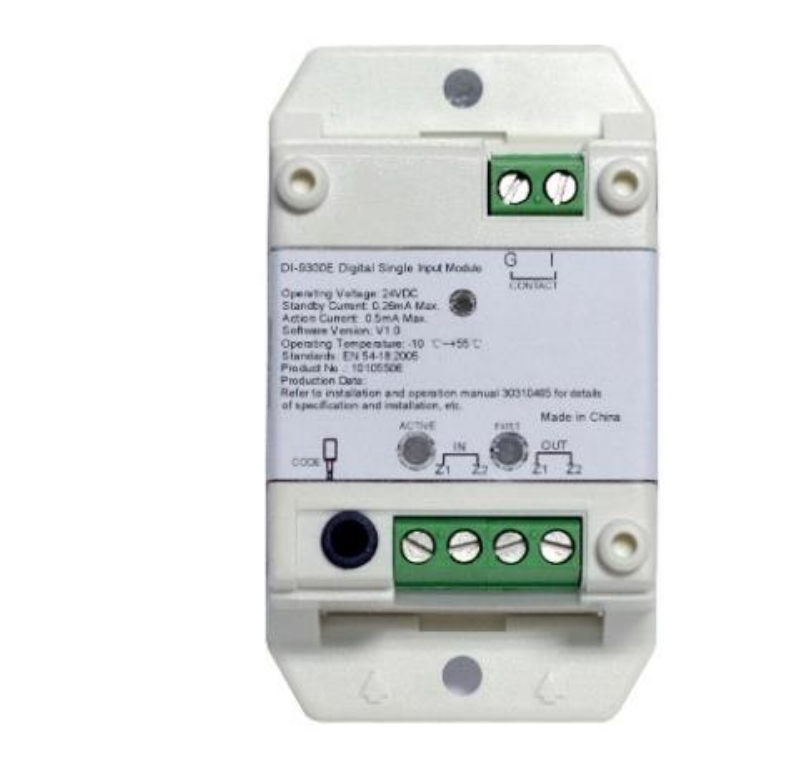

The GST DI-9300E is a loop-powered digital single input module for GST addressable fire alarm systems. It monitors a normally open or normally closed dry contact from field equipment and reports its status to the fire alarm control panel over the loop. Input wiring is monitored so an open circuit is reported as a fault.
Key features
- Accepts normally open (default) or normally closed contacts
- Electronically addressed; address and input mode set in the field with the P-9910B handheld programmer
- Built-in microprocessor and AD sampling technology
- Wall or 35mm DIN-rail mounting
- Red feedback LED and yellow fault LED
- EN 54-18:2005; CE and LPCB certified; WEEE and RoHS compliant
Technical specifications
- Operating voltage: loop 24V DC (16V to 28V DC), power limited
- Address range: 1 address, 1 to 242
- End-of-line resistor: 4k7, 1W
- Recommended cabling: 1.0mm² to 2.0mm² twisted pair
- Operating temperature: -10°C to +55°C
- Protection: IP30
- Dimensions (L x W x H): 78 x 45.3 x 28.5mm
- Weight: approx. 36.8g
- Enclosure: white ABS (RAL 9016)
