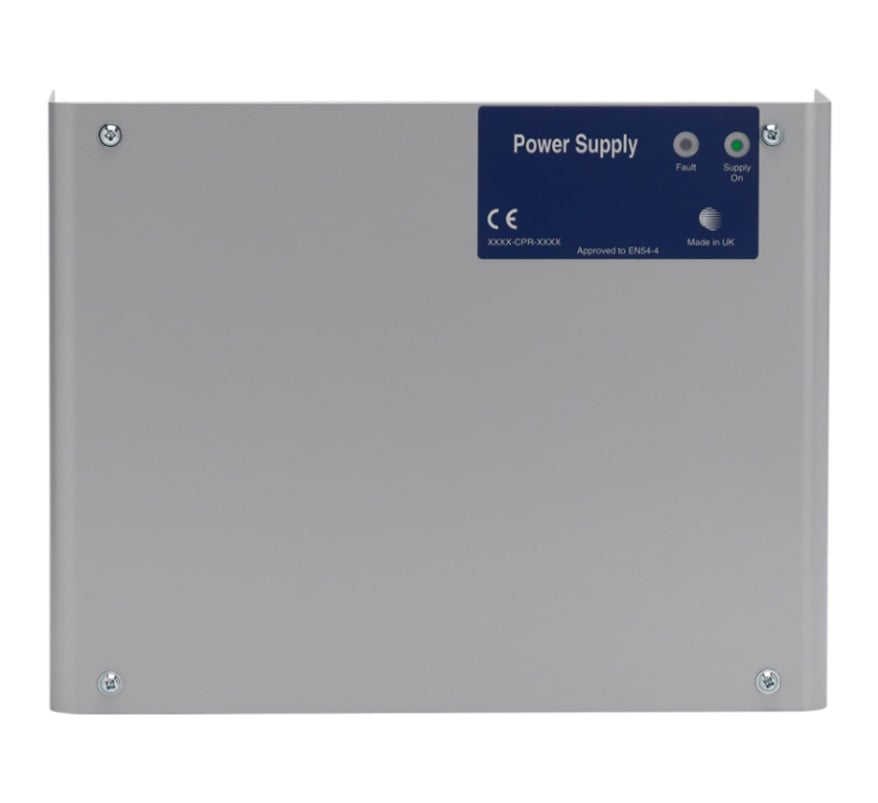

The HAES 5A EN54 Power Supply (PSU-1003) is an EN54-4 approved power supply unit for fire alarm applications where approved power is required but devices are not powered directly from the fire alarm control equipment, such as beam detectors, aspirating detectors and flame detectors.
It can also power sounder circuit controllers and expanders, control panel repeaters, remote communicators and other fire system critical loads. It has dual supply outputs, a failsafe fault relay output and supply healthy and fault LEDs as standard, and houses 2 x 18Ah batteries.
Key features
- 5A EN54 approved power supply
- Dual supply outputs as standard
- Failsafe fault relay output
- Houses 2 x 18Ah batteries
- Robust metal enclosure
- Supply healthy (green) and fault condition (yellow) LED indicators
Technical specifications
- Enclosure: steel, IP30, epoxy powder coated Interpon Radon, silver grey
- Dimensions: 404mm W x 374mm H x 95mm D
- Mains supply: 47-63Hz, 0.8A at 230V AC
- Internal power supply rating: 5A total including battery charging; maximum load shared between outputs 4A
- Output voltage: 19-29V DC
- Maximum ripple voltage: 150mV p-p
- Battery charging voltage: 27.3V DC nominal at 20°C, temperature compensated
- Battery charging current limit: 1.2A or 2.0A
- Maximum current from batteries: 4A with mains disconnected
- Battery fuse: 5A
- Battery type: Yuasa NP18-12 (12V 17.2Ah) fire retardant
- Terminal capacity: 0.5mm² to 2.5mm²
- Temperature range: -5°C to +40°C; maximum relative humidity 95%
