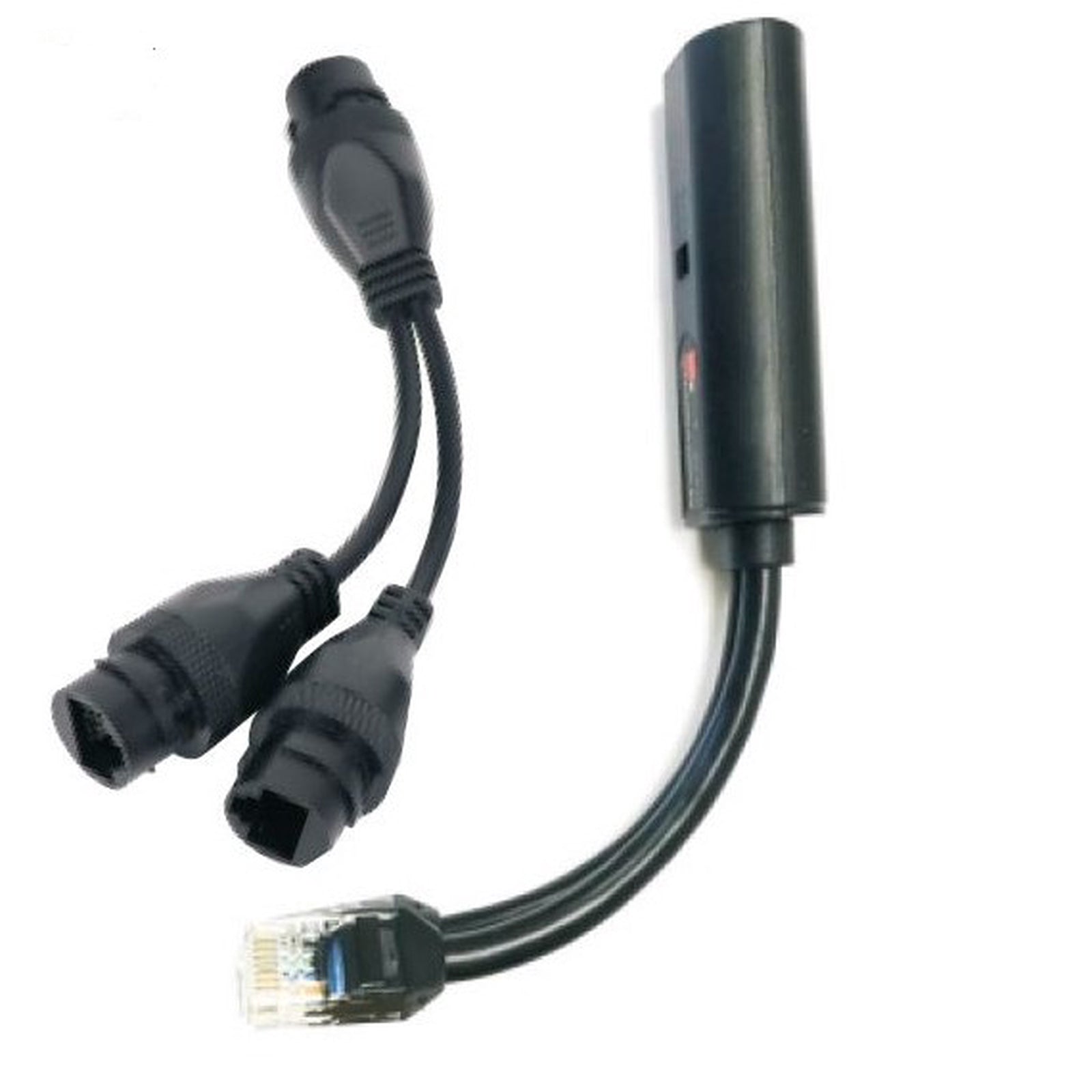

The Haydon HAY-POE-MULTI-IP-F is a 2-channel PoE multiplexer that connects two IP/PoE devices, such as IP cameras, to a PoE switch or NVR over a single Cat5/6 cable of up to 100 metres. This version has female RJ45 connectors with weatherproof boots, and the transmitter is rated IP68.
Key features
- Connects two IP/PoE devices to a PoE switch or NVR over a single Cat5/6 cable
- Up to 15.4W to each device on PoE Type 1 (IEEE 802.3af)
- Up to 25.5W to each device on PoE+ Type 2 (IEEE 802.3at)
- Switchable between Mode B (UK and Europe) and Mode A (USA and Asia) PoE wiring
- No PoE injector or PSU needed
- Can also be used with a non-PoE switch or NVR where the cameras have a separate power supply
- Female RJ45 connectors; transmitter rated IP68
- Plug and play
Technical specifications
-
Model: HAY-POE-MULTI-IP-F
-
Channels: 2
-
PoE standards: IEEE 802.3af, IEEE 802.3at
-
Power per device: Up to 15.4W (802.3af) / up to 25.5W (802.3at)
-
Mode A: Power and data on pins 1&2 (−) and 3&6 (+)
-
Mode B: Power on pins 4&5 (+) and 7&8 (−); data on pins 1&2 and 3&6
-
Cable: Cat5/6, up to 100 m
-
Ingress protection: IP68 (transmitter only)
