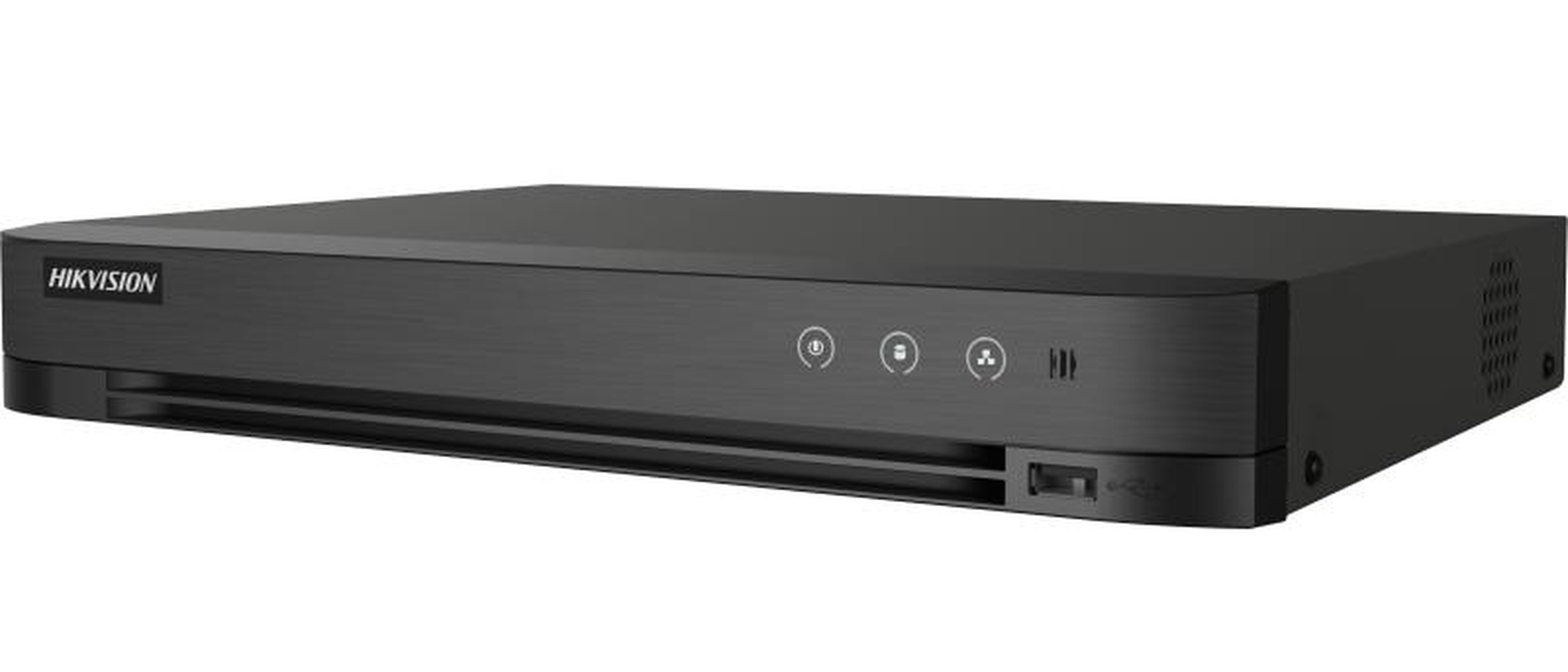

Hikvision iDS-7204HUHI-M1/XT(STD)/4A+4/1 4 Channel 5MP 1U H.265 AcuSense DVR

SKU: iDS-7204HUHI-M1/XT(STD)/4A+4/1Brand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub371 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$172.00
206.40 inc. VAT172.00 ex VAT
Stock:
In stock (37 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Hikvision iDS-7204HUHI-M1/XT(STD)/4A+4/1 4 Channel 5MP 1U H.265 AcuSense DVR $172.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 4 channels and 1 HDD 1U AcuSense DVR
  • Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 4-ch AcuSearch Technology
  • Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
  • Up to 8 channels IP camera inputs, each channel up to 8MP
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Frequently bought together

Product details

The Hikvision iDS-7204HUHI-M1/XT is a 4-ch 5 MP 1U H.265 AcuSense DVR from the Turbo HD AcuSense range. 4 channels and 1 HDD 1U AcuSense DVR. Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm. Support 4-ch AcuSearch Technology.

Key features

  • 4 channels and 1 HDD 1U AcuSense DVR
  • Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 4-ch AcuSearch Technology
  • Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
  • Up to 8 channels IP camera inputs, each channel up to 8MP
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology

Technical specification

Human/Vehicle Analysis Up to 4-ch
Face Picture Library Up to 16 face picture libraries
Face Picture Comparison Face picture comparison, face picture search; | 2-ch face picture comparison alarm (HD analogue camera)
IP Video Input 4-ch (up to 8-ch), each up to 8 MP
Analog Video Input 4-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz, | 1920 × 1080/60Hz, | 1280 × 1024/60Hz, | 1280 × 720/60Hz | HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, | 1280 × 1024/60Hz, | 1280 × 720/60Hz | HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), | resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream: | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. | Sub-stream: | WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 32
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
SATA 1 SATA interface
Capacity up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0; | Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
Power Supply 12 VDC, 1.5 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16 kg (2.6 lb)
