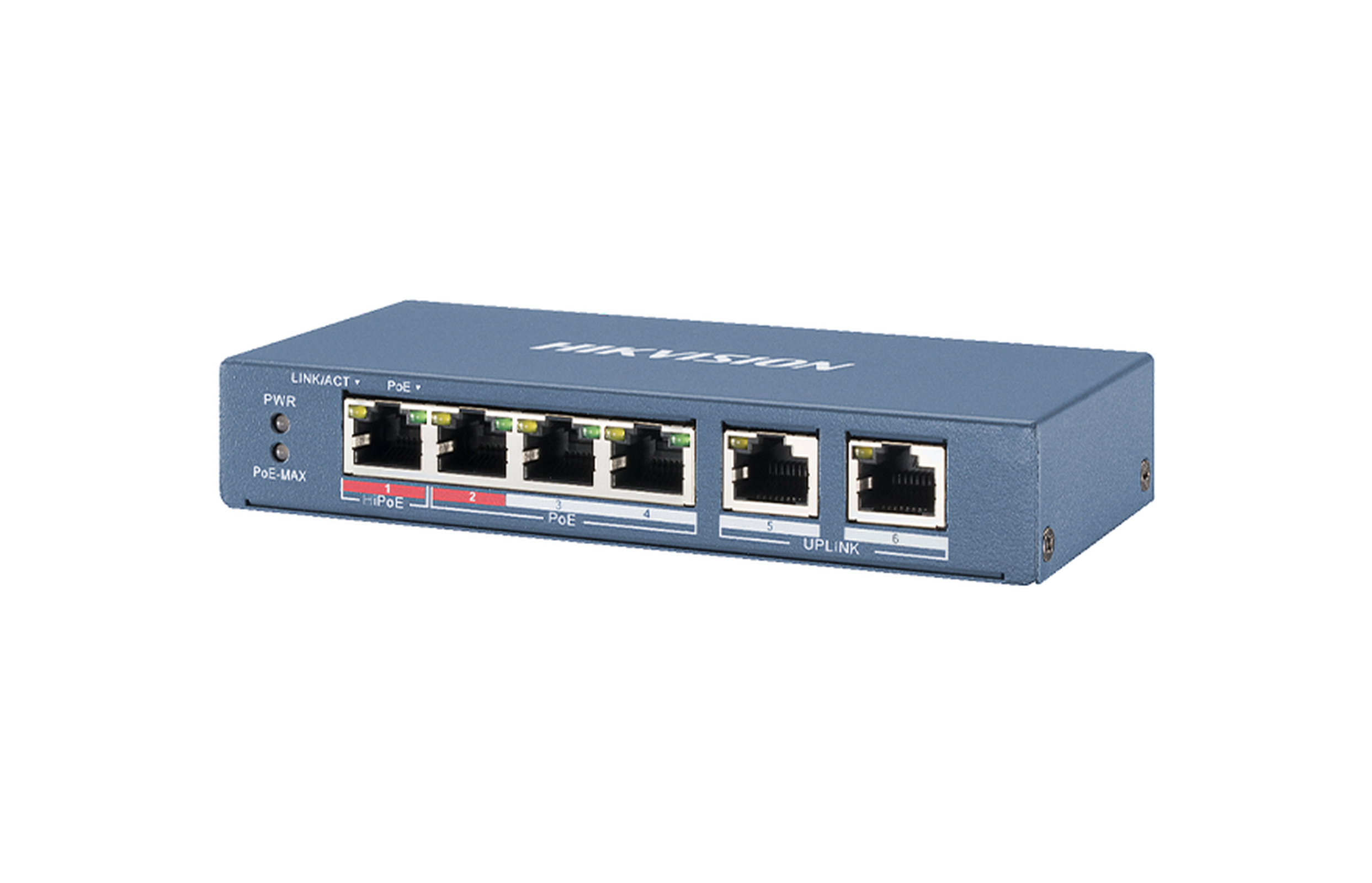

Hikvision DS-3E0106HP-E 4 Port Fast Ethernet Unmanaged POE Switch

SKU: DS-3E0106HP-EBrand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole1Same day dispatch
UK Hub631 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$62.00
74.40 inc. VAT62.00 ex VAT
Stock:
In stock (64 units)
Delivery
Same day dispatch
Order by 2pm (UK time)
Collect in Poole
Free click & collect
Free, 1 available
Hikvision DS-3E0106HP-E 4 Port Fast Ethernet Unmanaged POE Switch $62.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 4 x 10/100 Mbps PoE ports and 2 x 10/100 Mbps RJ45 ports
  • 60 W PoE power budget: port 1 Hi-PoE up to 60 W, ports 2 to 4 up to 30 W each
  • Intelligent PoE management: when the power supply exceeds the limit, the PoE ports manage power intelligently, which extends the switch lifetime
  • Up to 300 m long-range PoE transmission between the switch and cameras on ports 1 to 4
  • 4/8-core adaptive power supply; 8-core power reduces power loss on cables
  • 6 kV surge protection against sudden lightning surges in harsh environments

Frequently bought together

Hikvision 4 Port Gigabit Smart POE Switch
Hikvision 4" 4MP 25x Powered by DarkFighter IR Network Speed Dome
Hikvision 4-Port Gigabit Unmanaged PoE Switch

Product details

The Hikvision DS-3E0106HP-E is an unmanaged 4 port PoE switch for IP cameras and other PoE devices. It has four 10/100 Mbps PoE ports plus two 10/100 Mbps RJ45 ports, a 60 W PoE power budget and a Hi-PoE port 1 rated up to 60 W. Long-range mode extends PoE transmission on ports 1 to 4 to up to 300 m, and as an unmanaged switch it needs no configuration. Compare other models in our PoE switches range.

Key features

  • 4 x 10/100 Mbps PoE ports and 2 x 10/100 Mbps RJ45 ports
  • 60 W PoE power budget: port 1 Hi-PoE up to 60 W, ports 2 to 4 up to 30 W each
  • Intelligent PoE management: when the power supply exceeds the limit, the PoE ports manage power intelligently, which extends the switch lifetime
  • Up to 300 m long-range PoE transmission between the switch and cameras on ports 1 to 4
  • 4/8-core adaptive power supply; 8-core power reduces power loss on cables
  • 6 kV surge protection against sudden lightning surges in harsh environments
  • Designed for video: VIP ports (ports 1 to 2) forward important data first when bandwidth is insufficient
  • Metal, fan-free housing for desk or wall mounting

Technical specification

Shell Metal material, fan-free design
Net Weight 0.24 kg (0.53 lb)
Gross Weight 0.77 kg (1.70 lb)
Dimensions (W × H × D) 145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 48 VDC, 1.35 A
Max. Power Consumption 65 W
Power Consumption in Idle 5 W
Installation Mode Desk-Mounted, Wall-Mounted
Surge Protection 6 KV
Ports 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table 2 K
Switching Capacity 1.20 Gbps
Packet Forwarding Rate 0.89 Mpps
Internal Cache 768 Kbits
Long Range Ports 1 to 4: up to 300 m | Long range performance may vary depend on camera model or cable condition.
VIP Port Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
PoE Standard IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Hi-PoE: Port 1 | PoE: Ports 2 to 4
Max. Port Power Port 1: 60 W | Ports 2 to 4: 30 W
PoE Power Budget 60 W
EMC FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
Safety UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU)

Downloads

4 port PoE switch FAQs

How much power can this 4 port PoE switch supply?
The total PoE power budget is 60 W. Port 1 is a Hi-PoE port rated up to 60 W, and ports 2 to 4 are rated up to 30 W each, all within the 60 W total.

How far can cameras be from the switch?
In long-range mode, ports 1 to 4 support PoE transmission of up to 300 m. Hikvision notes that long-range performance may vary with the camera model and cable condition.

Is the DS-3E0106HP-E managed or unmanaged?
It is unmanaged, so it works out of the box with no setup. If you need smart features such as VLANs and port monitoring, choose a smart switch such as the Hikvision DS-3E1105P-EI-V2 4 port smart PoE switch, or browse all Hikvision PoE switches.

Datasheets & documents

No datasheet is online for this product yet. Ask us and we will email it to you.
