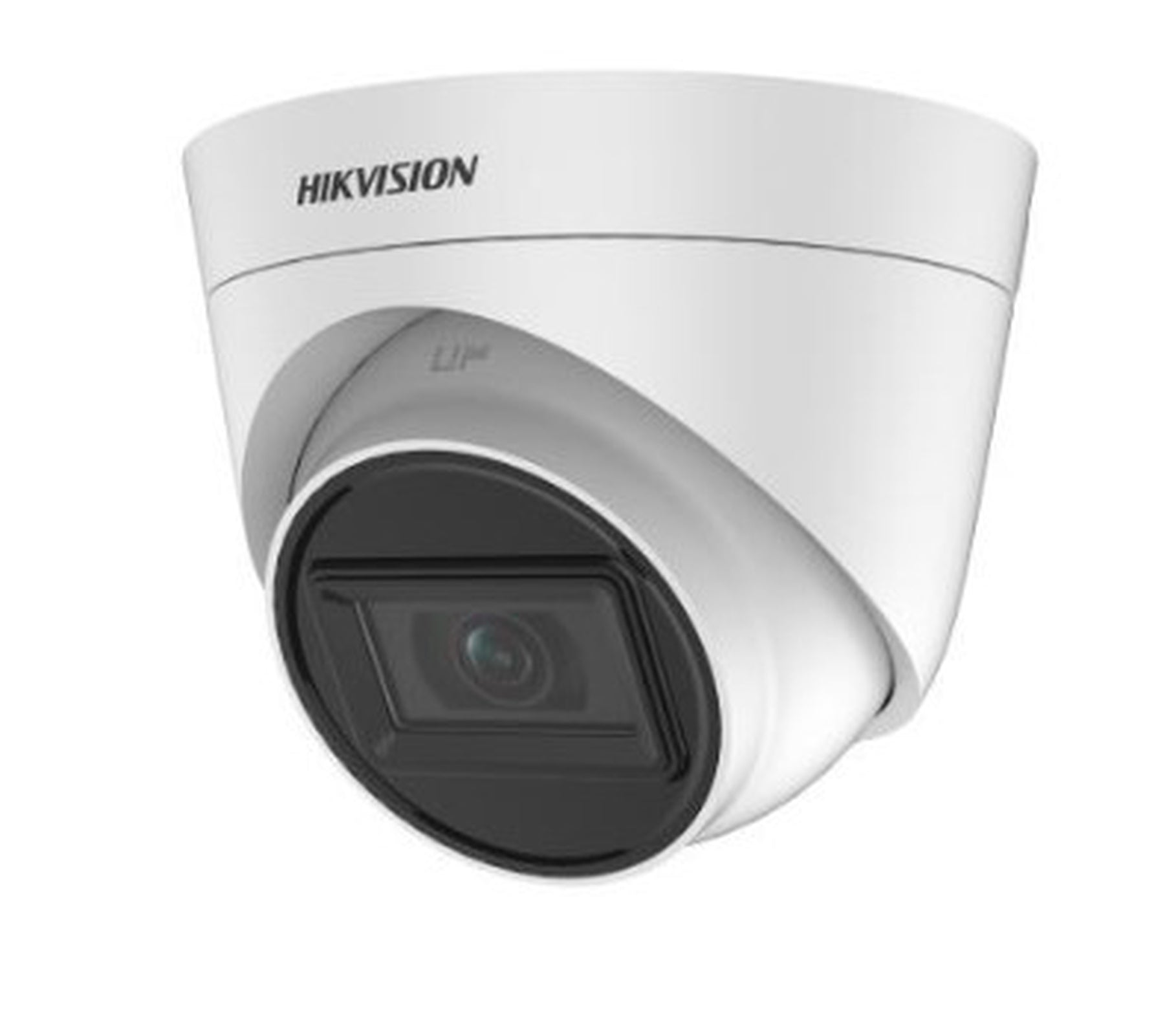

Hikvision 5MP PoC Fixed Turret Camera

Hikvision DS-2CE78H0T-IT3E(C) - 5 MP PoC Fixed Turret Camera

The Hikvision DS-2CE78H0T-IT3E(C) is a 5 MP PoC Fixed Turret Camera from the Turbo HD Value range. High quality imaging with 5 MP, 2560 × 1944 resolution. 2.8 mm and 3.6 mm fixed focal lens. Up to 40 m IR distance for bright night imaging.

Key features

• High quality imaging with 5 MP, 2560 × 1944 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)

Technical specification

Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s | NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens Type	2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° | 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Smart IR
Frame Rate	5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR, BLC, HLC, Global
Noise Reduction	2D DNR
White Balance	Auto/Manual
AGC	Yes
Video Output	1 HD analogue output
Material	Front Cover: Plastic | Main Body: Metal
Dimension	91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
Weight	Approx. 326 g (0.72 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25%/PoC.af | *You are recommended to use one power adapter to supply the power for one camera.
Consumption	Max. 3 W |
IR Range	Up to 40 m
Protection	IP67

Downloads

• DS-2CE78H0T-IT3E(C) Data Sheet (PDF)
