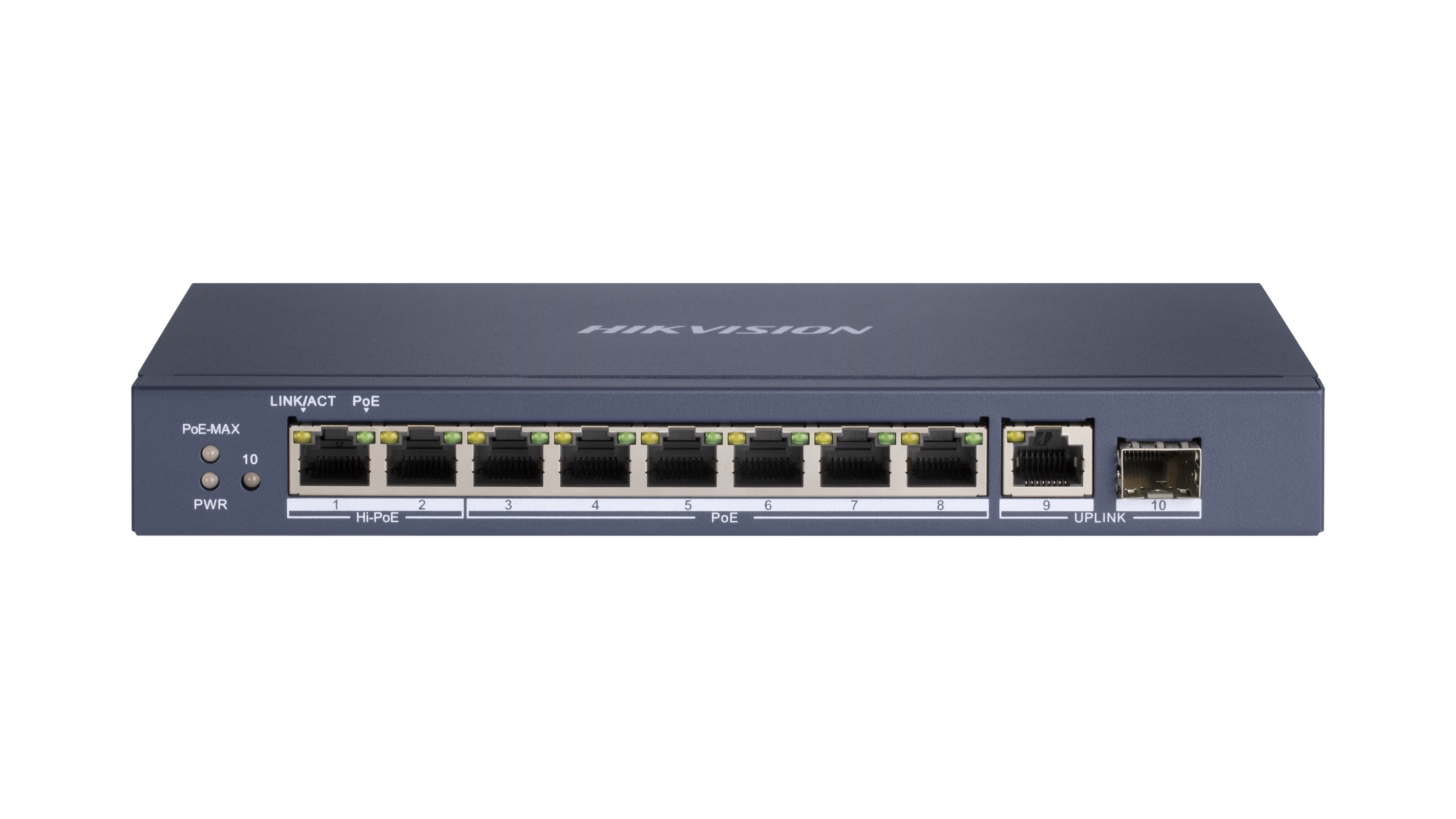

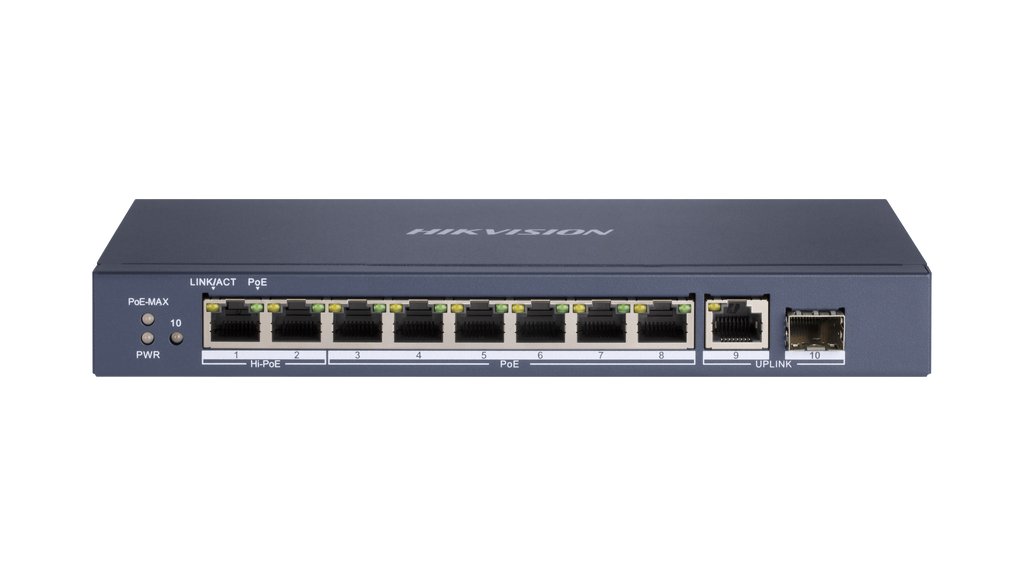

Hikvision DS-3E0510HP-E - 8 Port Gigabit Unmanaged POE Switch
The Hikvision DS-3E0510HP-E is an 8 Port Gigabit Unmanaged POE Switch from the Hikvision range. 6 × gigabit PoE port, 2 × gigabit Hi-PoE port, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port.. IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output)..
Key features
- 6 × gigabit PoE port, 2 × gigabit Hi-PoE port, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max
- 90 W PoE output)
- IEEE 802.3at/af standard for PoE ports (Max
- 30 W PoE output)
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 kV surge protection for PoE ports
- Up to 300 m long-range transmission
- PoE watchdog to auto detect and restart the cameras that do not respond
- Port isolation to improve network security
- Gigabit network access design
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Technical specification
| Shell |
Metal material, fan-free design |
| Net Weight |
0.59 kg (1.30 lb) |
| Dimensions (W × H × D) |
217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'') |
| Gross Weight |
0.71 kg (1.57 lb) |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity |
5% to 95% (no condensation) |
| Relative Humidity |
5% to 95% (no condensation) |
| Power Supply |
54 VDC, 2.22 A |
| Max. Power Consumption |
120 W |
| Power Consumption in Idle |
10 W |
| Installation Mode |
Desk-Mounted |
| Surge Protection |
6 KV |
| Ports |
8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table |
4 K |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| Internal Cache |
1.5 Mbits |
| Long Range |
Ports 7 to 8: up to 300 m | Long range performance may vary depend on camera model or cable condition. |
| Port Isolation |
Ports 1 to 8: port isolation mode to improve network security. |
| PoE Watchdog |
Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| PoE Standard |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Power Pin |
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port |
Hi-PoE: Ports 1 to 2 | PoE: Ports 3 to 8 |
| Max. Port Power |
Ports 1 and 2: 90 W | Ports 3 to 8: 30 W |
| PoE Power Budget |
110 W |
| EMC |
FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety |
UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry |
CE-RoHS (2011/65/EU) |
