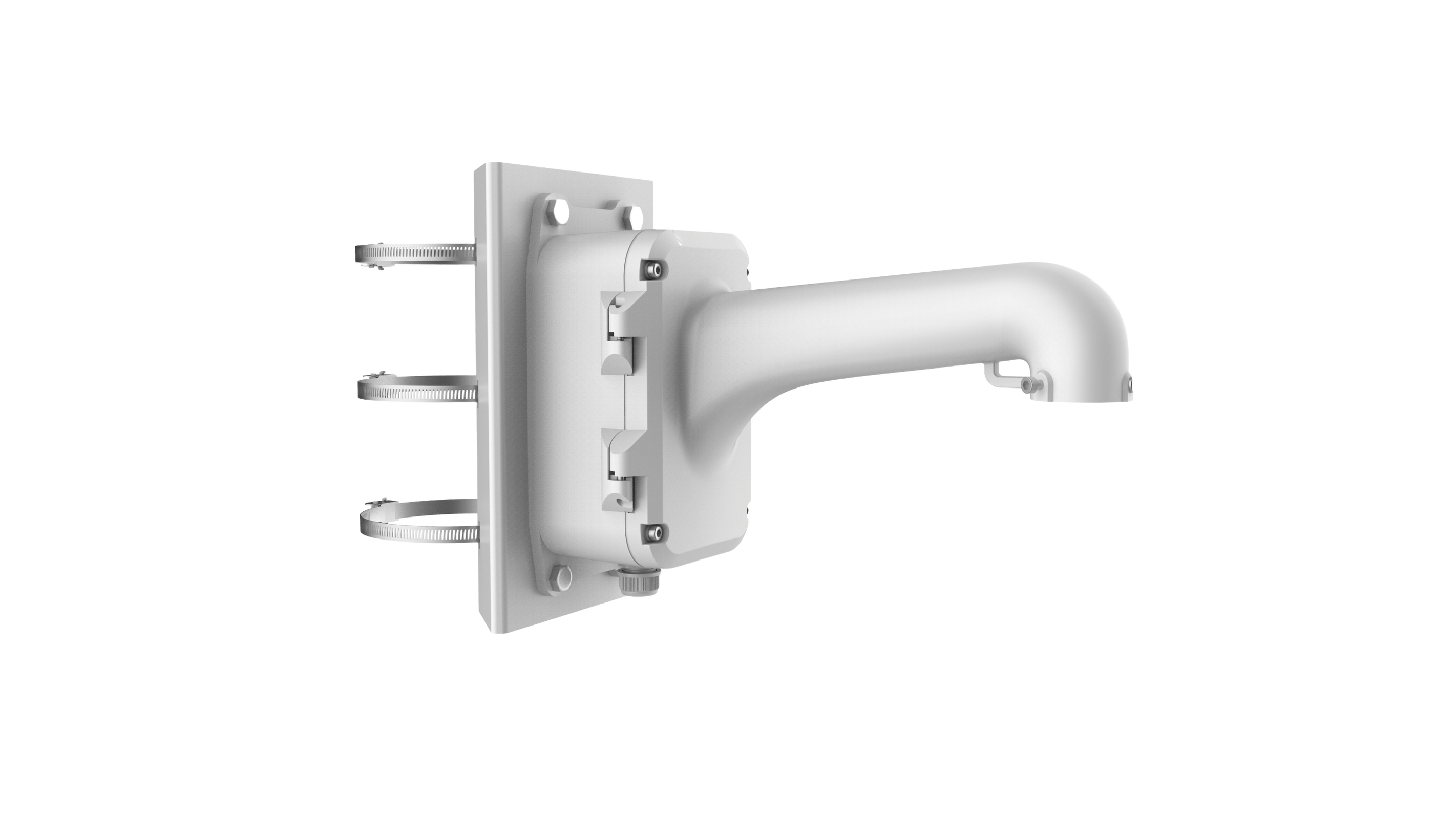

The Hikvision DS-1604ZJ-BOX-POLE is a vertical pole mount for Hikvision speed dome (PTZ) cameras with a built-in junction box. It fits poles from 100 mm to 200 mm in diameter, and the junction box can hold the camera's power adapter.
Key features
- Vertical pole mount with junction box
- Aluminium alloy and steel with surface spray treatment
- Adjustable for pole diameters from 100 mm to 200 mm
- Bottom and back cable outlets
- Junction box can hold the power adapter (AC 24 V, 3 A)
- Hook for a safety rope makes speed dome installation easier
- Maximum load capacity of 10 kg
Technical specifications
- Model: DS-1604ZJ-BOX-POLE
- Colour: Hikvision white
- Material: aluminium alloy and steel
- Pole diameter: 100 mm to 200 mm
- Dimensions: 456.5 × 314 × 194.9 mm
- Weight: 5.7 kg
- Max. load capacity: 10 kg
