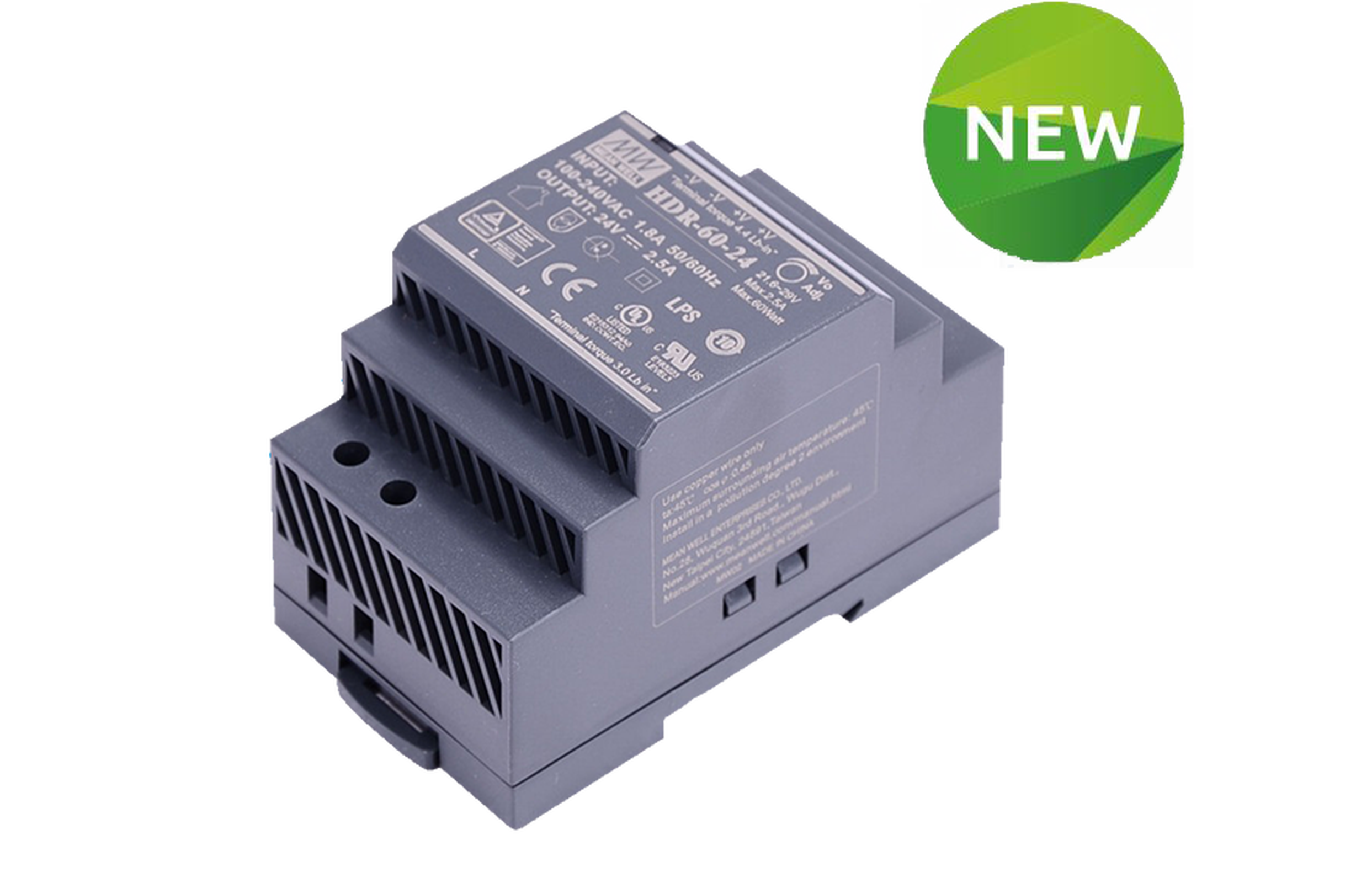

The Hikvision DS-KAW60-2N is a 24 VDC, 60 W DIN-rail power supply for the DS-KAD706 and DS-KAD706-S distributors used in Hikvision 2-wire video intercom systems.
Key features
- Ultra-thin 53.5 mm design
- Universal 85–264 VAC input
- No-load loss of 0.3 W
- LPS (limited power source) passed
- LED power status indicator
- Mounts on TS35 DIN rail (7.5 or 15)
Technical specifications
-
Model: DS-KAW60-2N
-
Input: 85 to 264 VAC
-
Output: 24 VDC
-
Power: 60 W
-
Working temperature: −30°C to 70°C
-
Working humidity: 20% to 90%
-
Dimensions (W × H × D): 52.5 × 90 × 54.5 mm
