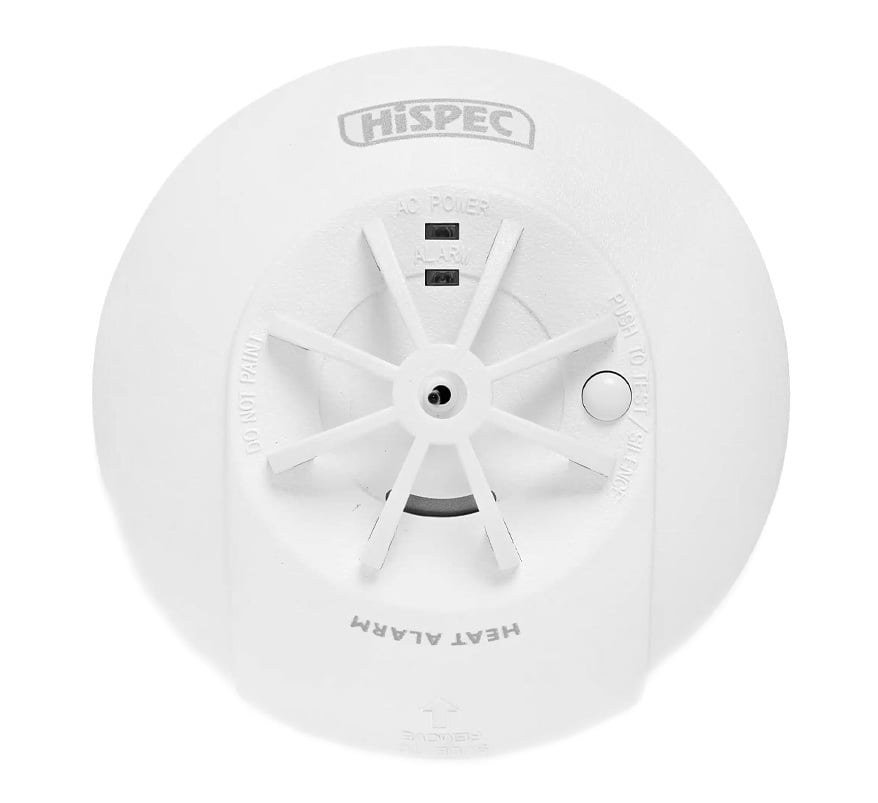

The Hispec HSSA/HE/FF10 is a 230V mains-powered heat alarm with a 10-year rechargeable lithium back-up battery. It alarms at a fixed 60°C, so it is suited to kitchens, garages, cellars, boiler rooms, attics and other areas where fumes, smoke or dust would cause false alarms from a smoke alarm. It can be hard-wire interconnected with up to 20 compatible Hispec alarms and is supplied with Hispec's Fast Fix base.
Key features
- Fixed 60°C heat detection (Class A1 thermistor)
- Hard-wire interconnect up to 20 devices over 150m
- 10-year rechargeable lithium battery back-up
- Fast Fix base included
- Loud 85dB alarm
- Test function and hush feature
- Insect-proof and tamper-proof
- A radio-interlink version is also available (HSSA/HE/RF10-PRO)
Technical specifications
- Product code: HSSA/HE/FF10
- Detection type: fixed heat thermistor, Class A1, 60°C alarm point
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Operating current: ≤40mA in alarm
- Coverage area: 20m² maximum at 2.4m mounting height
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
- Weight: 144g
- Scheme rating: D1 (BS 5839-6:2019)
- Approvals: BS 5446-2:2003
- Class II apparatus
- Guarantee: 5 years
