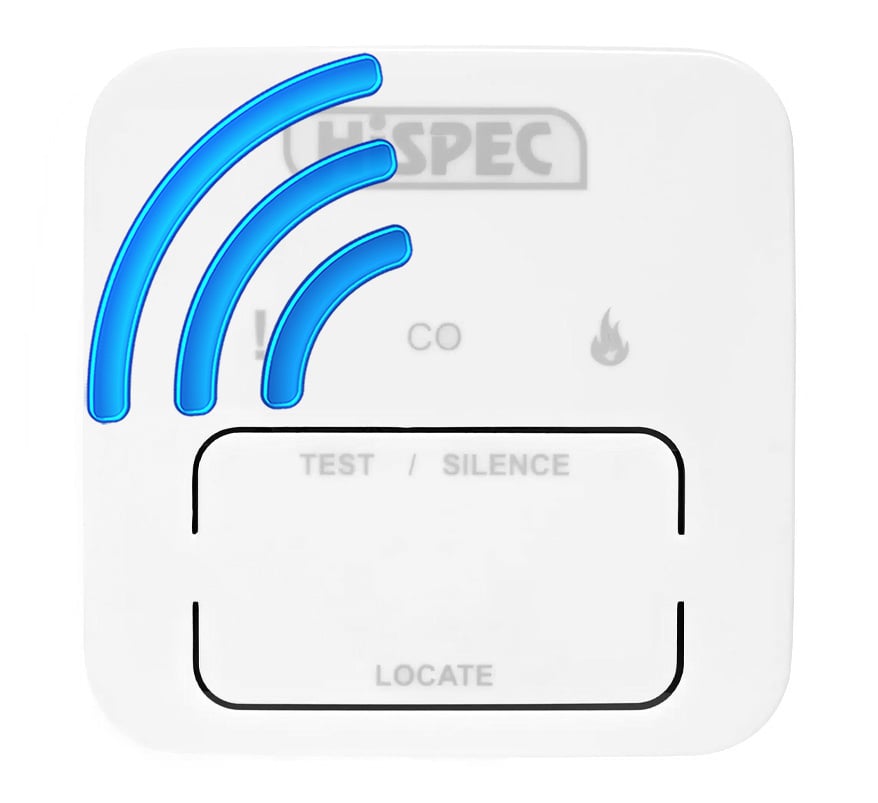

The Hispec RF PRO HSSA/CU/RF10-PRO is a battery-powered radio-frequency control unit for Hispec RF PRO wireless smoke, heat and carbon monoxide alarm systems. From one convenient, reachable position it lets the occupant test every alarm in the system, locate the alarm that triggered, and silence the other alarms, with no need to reach ceiling-mounted detectors. It runs on a sealed 10-year lithium battery and communicates on 868MHz with up to 19 RF PRO alarms.
Key features
- Interconnects with the Hispec RF PRO range of smoke, heat and CO alarms
- Controls up to 19 alarms (20 devices per Home Group including the control unit)
- Test, Locate and Silence functions from a central position
- Separate red LED indicators for fire and CO warnings; yellow LED for low battery or fault
- Locate mode silences all alarms except the source alarm, so it can be traced quickly
- Memory function keeps the unit joined to its Home Group if power is removed
- Sealed 10-year lithium battery; no mains wiring required
Technical specifications
- Product code: HSSA/CU/RF10-PRO
- Power source: sealed lithium battery with 10-year life, 1600mAh
- Radio frequency: 868MHz
- RF range: up to 80m in open areas, 30m indoors
- Maximum RF devices: 20 per Home Group, including the control unit
- Test mode duration: 2 minutes 30 seconds (automatic time-out)
- Operating temperature: 0°C to 40°C
- Humidity: 15% to 95% (non-condensing)
- Weight: 80g
- EMC: EN 301 489-1, EN 301 489-3; safety: EN 60065
- Guarantee: 5 years
