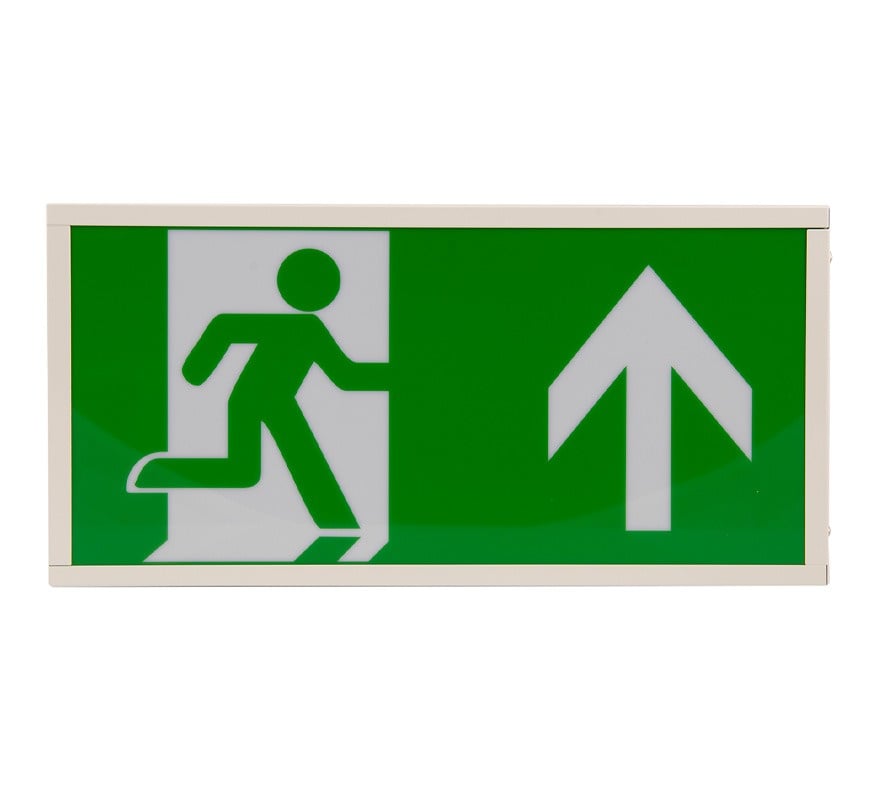

Hispec Rhine 2.5W Universal LED Emergency Exit Box with Self Test (Arrow Up) (HSEM/LEDEB-ST)

The Hispec Rhine HSEM/LEDEB-ST is a 2.5W universal LED emergency exit box with self-test and an arrow up legend. It can run in maintained or non-maintained mode from a 220–240V AC supply and gives at least 3 hours of emergency operation from its lithium (LiFePO4) battery. It is made in accordance with BS EN 60598-2-22 for escape route signage in commercial and public buildings.

Key features

• Maintained or non-maintained operation
• Screen-printed arrow up legend included (other directions sold separately)
• Long-life LiFePO4 lithium battery with overcharge and deep discharge protection
• Manual test button
• Automatic self-test: monthly 2-minute function test and annual 3-hour duration test
• Indicator LED shows charging, full charge and battery or LED faults
• No switched live required
• Top and rear 20mm cable entries

Technical specifications

• Product code: HSEM/LEDEB-ST
• Rated voltage: 220–240V AC, 50/60Hz
• Wattage: 2.5W (maintained mode), 1.5W (emergency mode)
• Lumen output: 35lm (maintained mode), 17lm (emergency mode)
• Colour temperature: 6400K
• Battery: LiFePO4, 3.2V 1600mAh
• Charging time: 24 hours
• Minimum emergency duration: 3 hours
• Ingress protection: IP20
• Protection class: Class I
• Operating temperature: -10°C to 30°C
• Weight: 1054g
• Standards (instruction leaflet): IEC 60598-2-22 and IEC 62034
• Produced in accordance with: BS EN 60598-2-22
