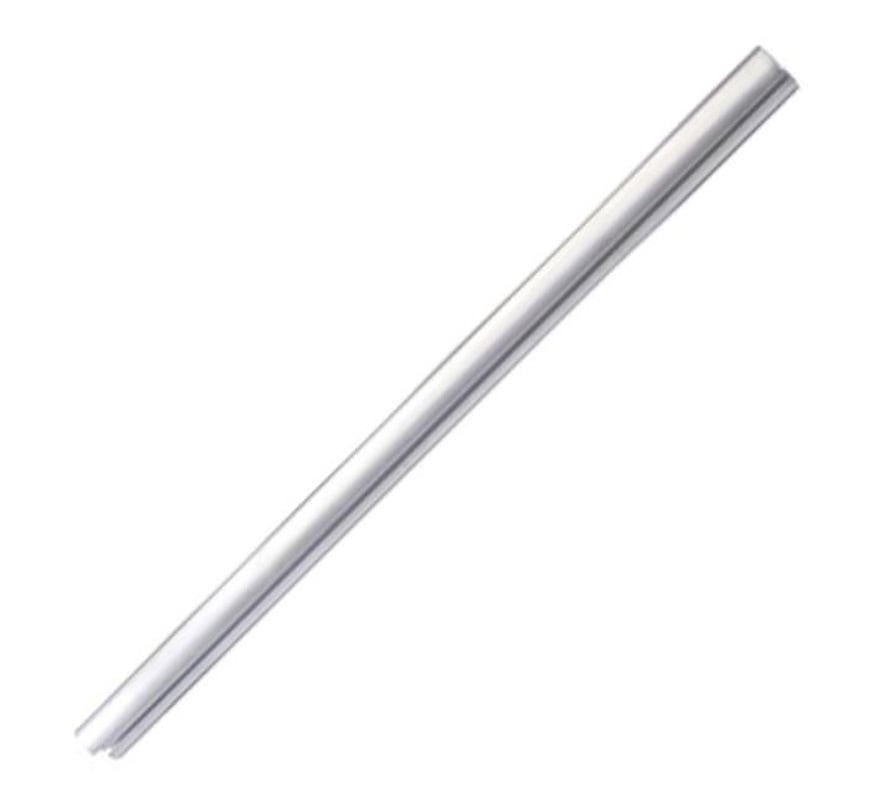

This Hochiki SDP-3 PIPE is a 1500 mm sampling pipe for the SDP-3 duct probe housing. The Hochiki SDP-3 is a duct probe housing that lets a standard Hochiki photoelectric smoke detector, either a conventional detector or an analogue addressable sensor, be mounted on the outside of an air duct to monitor the air inside it. Air in the duct is drawn through a sampling pipe into the housing, where the detector samples it continuously. The pipe attaches to the SDP-3 and is inserted into the duct. The SDP-3 is supplied with a 0.6 m pipe as standard; this 1.5 m pipe is available separately.
Key features
- Sampling pipe for the SDP-3 one-tube air sampling system
- Lets a standard Hochiki smoke detector sample air from inside a duct
- Genuine Hochiki SDP-3 accessory
Technical specifications
- Product code: SDP-3 PIPE (1.5M)
- Pipe length: 1.5 m (1500 mm)
- For use with: Hochiki SDP-3 duct probe housing
- SDP-3 compatible detectors: analogue ACA, ACC, ALG, ALN (all variants); conventional SLR (all variants)
- SDP-3 housing: IP54, 640 g, 280 x 150 x 100 mm (L x W x H)
- SDP-3 operating temperature: -20 °C to +50 °C
