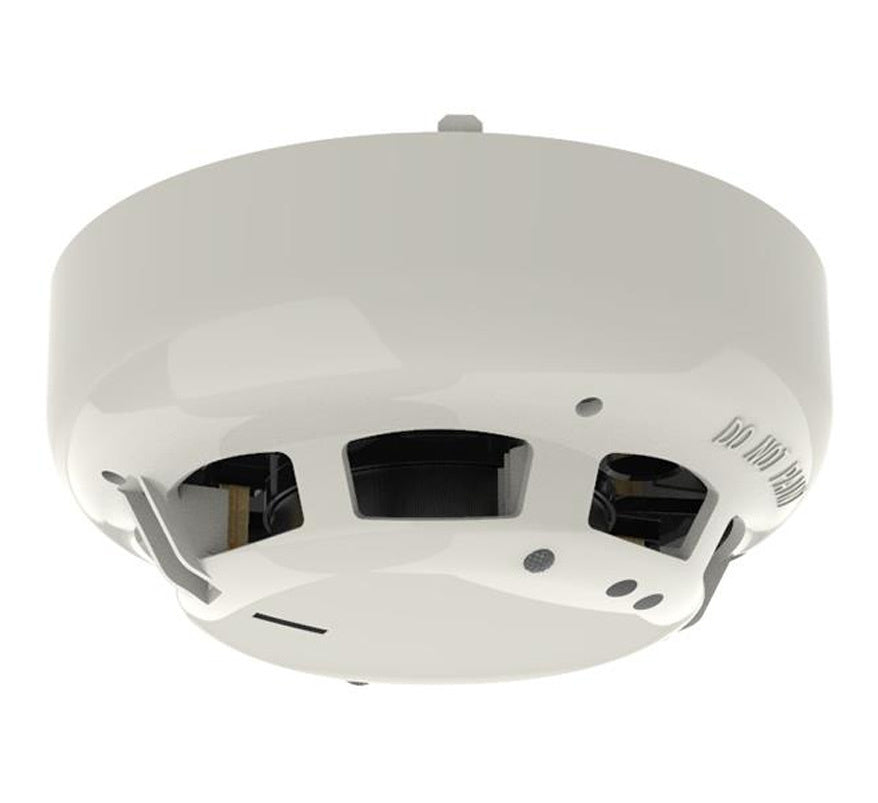

Hochiki ACC-EN(SCI) Addressable Optical/Heat Multi-Sensor Detector with SCI - Ivory Case

The Hochiki ACC-EN(SCI) is an intelligent optical/heat multi-sensor with a built-in short-circuit isolator (SCI), in an ivory case, for the Hochiki ESP analogue addressable fire detection system. It combines a thermal element with a High Performance photoelectric smoke chamber and has three modes controlled from the fire alarm control panel: optical, heat or both.

Key features

• Integral short-circuit isolator
• Three user-selectable modes: optical, heat or combined
• Removable High Performance smoke chamber for easy maintenance
• Twin LEDs give 360° viewing
• Polling LEDs can be set to pulsing or non-pulsing from the panel (control panel compatibility required)
• Variable sensitivity
• Electronically addressed with the Hochiki TCH-B200 hand-held programmer
• LPCB and VdS approved to classes A1 and C

Technical specifications

• Ordering code: ACC-EN(SCI) (ivory)
• Operating voltage: 17 to 41 VDC
• Low power mode: 120 µA (typical)
• Quiescent current: 460 µA (typical) at 24 VDC
• Maximum current consumption: 30 mA
• Alarm current (controlled by the panel): 9.1 mA, excluding remote indicator
• Transmission method: digital communications using ESP
• Operating temperature: -10 °C to +50 °C
• Operating humidity: 95% RH non-condensing (at 40 °C)
• Storage temperature: -30 °C to +60 °C
• Case material: polycarbonate
• Weight: 95 g
• Dimensions: Ø100 x 45 mm (H)
• Compatible bases: YBV-R/4 SCI base (for SCI function); also YBN-R/3, YBO-BS, YBO-BSB2
• Base fixing centres: 48 to 74 mm
• Approvals: EN54-17, EN54-7 and EN54-5 (EN54-29 listed as pending); LPCB and VdS classes A1 and C
• Ingress protection: IP42
