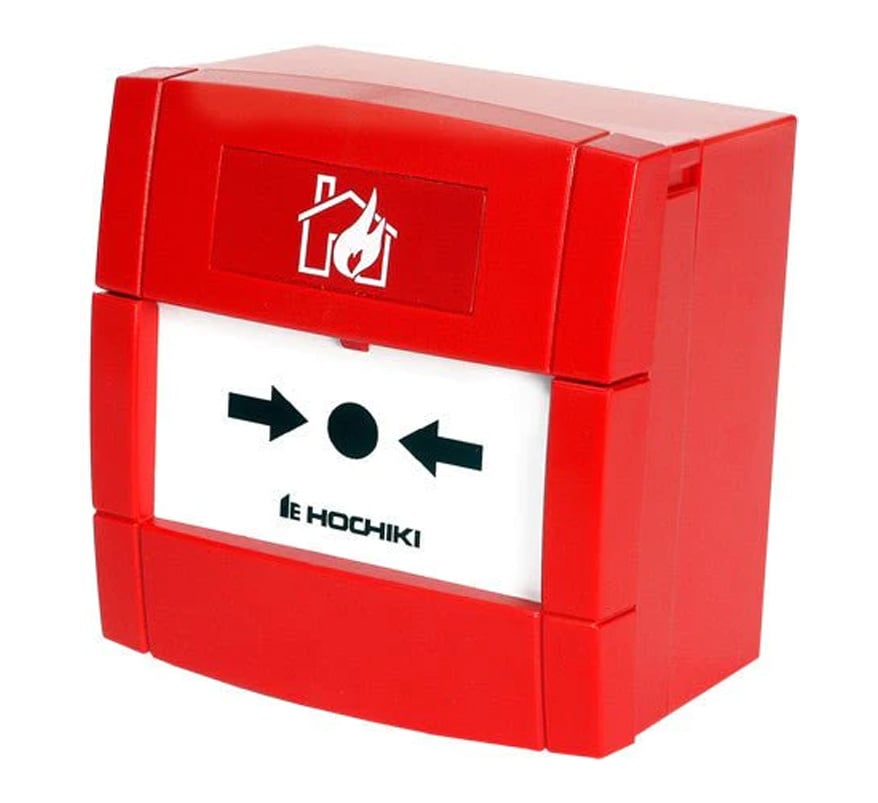

The Hochiki CCP-SAVWIRE is a red conventional manual call point designed specifically for "Savwire" (two-wire) systems. It is based on the industry-standard KAC World Series housing and has easy-to-install push-fit wiring terminals.
It takes either a frangible glass element or a non-frangible plastic element, and is supplied with a backbox for surface mounting. Check control panel compatibility before use.
Key features
- Designed for "Savwire" (two-wire) systems
- Push-fit terminals accept up to 2.5 mm² solid conductor
- Supports frangible glass or non-frangible plastic elements
- Approved to EN54-11:2001
Technical specifications
- Ordering code: CCP-SAVWIRE
- Nominal operating resistance: 470 Ω
- Maximum contact resistance: 200 Ω
- IP rating: IP24D
- Operating / storage temperature: -20 °C to +55 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Colour / material: red / ABS
- Weight / dimensions (flush): 110 g / W 89 x H 93 x D 27.5 mm
- Weight / dimensions (surface, with backbox): 161 g / W 89 x H 93 x D 59.5 mm
- Spare elements: frangible KAC/G/HE, non-frangible KAC/EWS/HE
