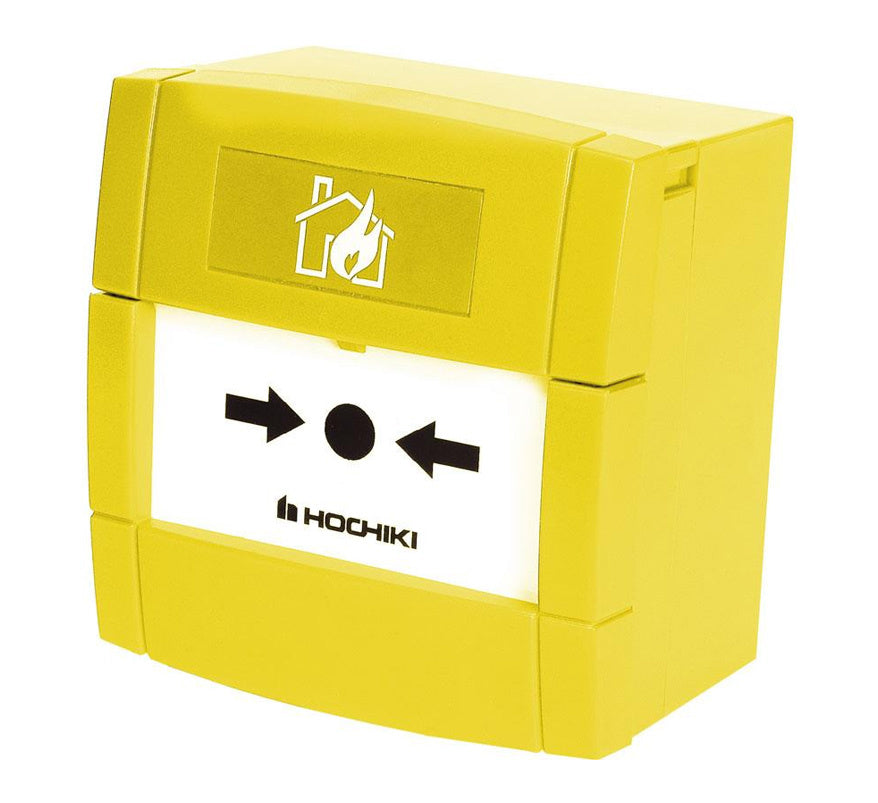

Hochiki CDX Conventional Manual Call Point (Yellow) (CCP-EY)

The Hochiki CCP-EY is a yellow conventional manual call point for internal use, part of the Hochiki CDX conventional range. It is based on the industry standard KAC World Series housing, has easy-to-install push-fit wiring terminals and accepts either a frangible glass element or a non-frangible resettable plastic element. Please note that only the red variant of this range is EN 54 / LPCB approved; the yellow version is not EN 54 approved.

Key features

• Yellow casing
• Industry standard KAC World Series housing
• Push-fit wiring terminals take up to a 2.5 mm² solid conductor
• Supports frangible glass or non-frangible plastic element
• Supplied with surface mount back box
• Not EN 54 approved (red variant only is LPCB approved)

Technical specifications

• Nominal operating resistance: 470 Ω
• Maximum contact resistance: 200 Ω
• Maximum voltage: 30 V DC
• Current in alarm at 24 V DC: 50 mA
• Operating temperature: -10°C to +55°C
• Maximum humidity: 93 ±3% RH, non-condensing (at 40°C)
• Ingress protection: IP24D
• Case: yellow ABS
• Dimensions (W x H x D): 89 x 93 x 59.5 mm surface mounted (27.5 mm deep flush)
• Weight: 180 g surface mounted (130 g flush)
• Spare elements: frangible KAC/G/HE; non-frangible KAC/EWS/HE
