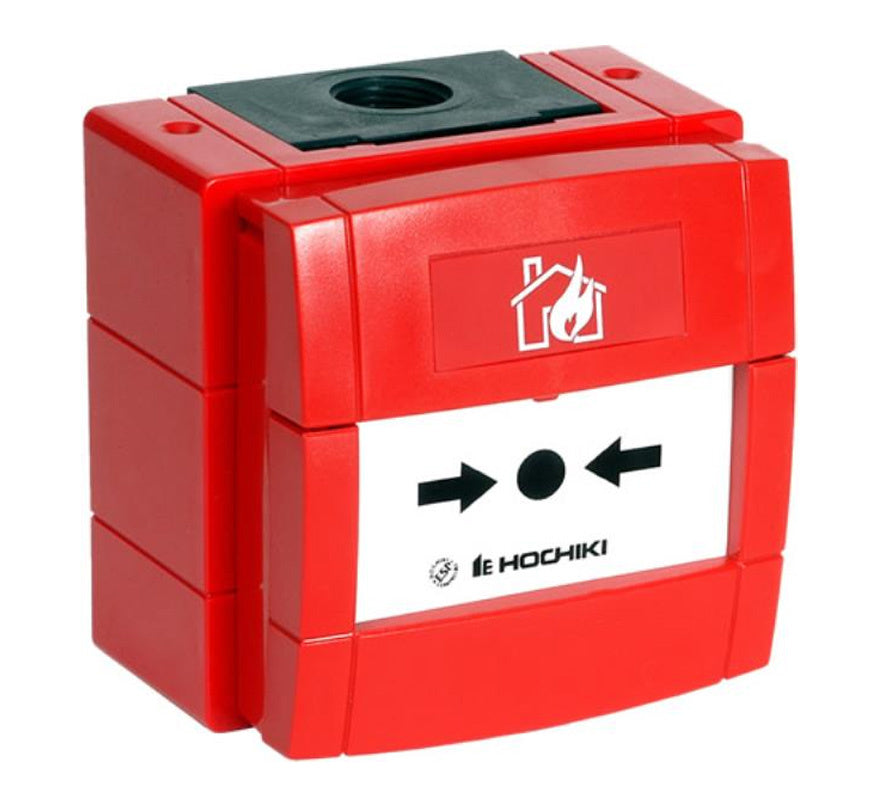

The Hochiki CCP-W is an IP67 weatherproof conventional manual call point from the CDX range, suitable for external use. It is based on the industry-standard KAC World Series housing and has easy-to-install push-fit wiring terminals.
The weatherproof housing means it can be mounted in severe environmental conditions without water ingress. It is supplied with a back box as standard and a non-frangible element, and can also take a frangible glass element.
Key features
- IP67 weatherproof housing for external use
- Supplied with back box as standard
- Supplied with non-frangible element as standard
- Supports frangible glass or non-frangible plastic elements
- Push-fit terminals accept up to 2.5 mm² solid conductor
- Approved to EN54-11:2001
- Approved by LPCB
Technical specifications
- Ordering code: CCP-W
- Colour: red
- Nominal operating resistance: 470 Ω
- Maximum contact resistance: 200 Ω
- IP rating: IP67
- Operating / storage temperature: -25 °C to +70 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Case material: ABS
- Weight: 234 g
- Dimensions: W 98 x H 94 x D 78 mm
- Spare elements: frangible KAC/G/HE, non-frangible KAC/EWS/HE
