Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
SKU: CHQ-ARI(WHT)Brand: Hochiki
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
£29.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- High-intensity LED technology with Fresnel lens
- Addressable with the TCH-B200 hand-held programmer
- Up to 127 devices per loop
- Fits the standard ESP base (YBN-R/3), base sounders (CHQ-BS or YBO-BS), base sounder beacon (YBO-BSB) or short-circuit isolator base (YBO-R/SCI)
- Casing matches the ESP sensor range
- Approved by VdS; not EN54-23 compliant
Frequently bought together
Hochiki
Hochiki CHQ-CB(RED)/RL Addressable Ceiling VAD Beacon - Red Case, Red LEDs (7.5m)
Sale price£59.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CHQ-CB(RED)/WL Addressable Ceiling VAD Beacon - Red Case, White LEDs (7.5m)
Sale price£59.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CHQ-CB(RED)/WL-15 Addressable Ceiling VAD Beacon - Red Case, White LEDs (15m)
Sale price£67.80
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CHQ-CB(WHT)/RL Addressable Ceiling VAD Beacon - White Case, Red LEDs (7.5m)
Sale price£59.35
In stockProduct details

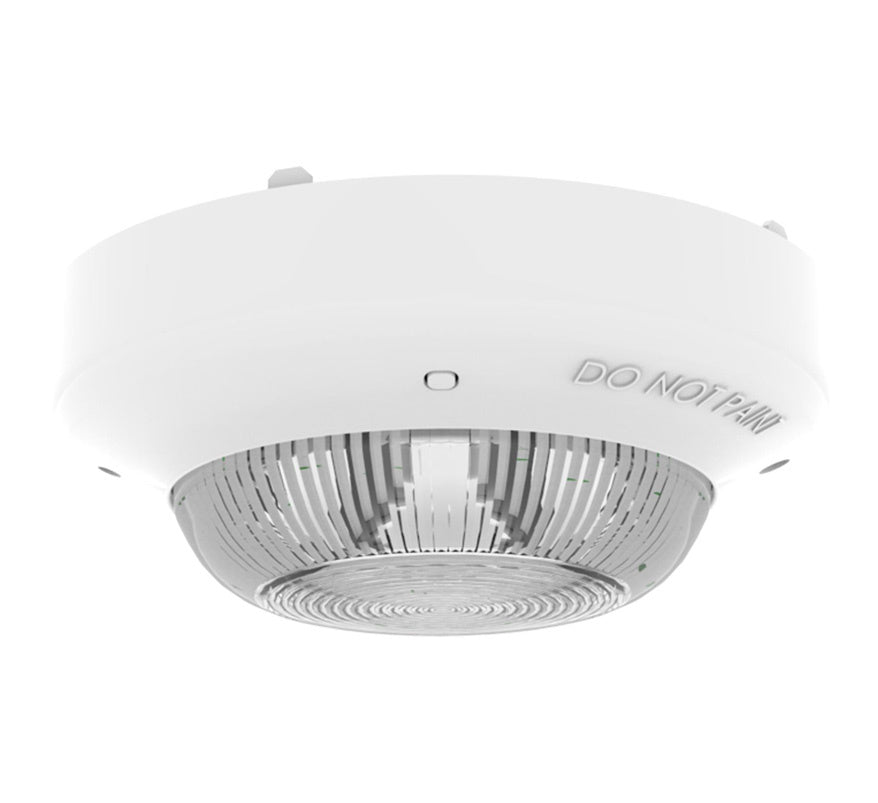

The Hochiki CHQ-ARI(WHT) is a loop-powered addressable remote indicator in a white case with a clear lens, for the Hochiki ESP analogue addressable fire alarm system. High-intensity LEDs behind a Fresnel lens give a highly visible signal, and the casing matches the ESP sensor range in shape and colour. It is an indicator only and is not EN54-23 compliant, so it is not a substitute for a visual alarm device.
Key features
- High-intensity LED technology with Fresnel lens
- Addressable with the TCH-B200 hand-held programmer
- Up to 127 devices per loop
- Fits the standard ESP base (YBN-R/3), base sounders (CHQ-BS or YBO-BS), base sounder beacon (YBO-BSB) or short-circuit isolator base (YBO-R/SCI)
- Casing matches the ESP sensor range
- Approved by VdS; not EN54-23 compliant
Technical specifications
- Ordering code: CHQ-ARI(WHT) (white)
- Operating voltage: 17 to 41 VDC
- Quiescent current: 280 µA typical (300 µA maximum)
- Loop current when polled: 22 mA ±20%
- Alarm current: 4.5 mA typical (5.4 mA maximum)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Case material: ABS
- Lens colour: transparent (clear)
- Weight: 88 g
- Dimensions: Ø100 x 38 mm (H), 46 mm with base
- Base fixing centres: 48 to 74 mm
- Approvals: VdS (G206053)
