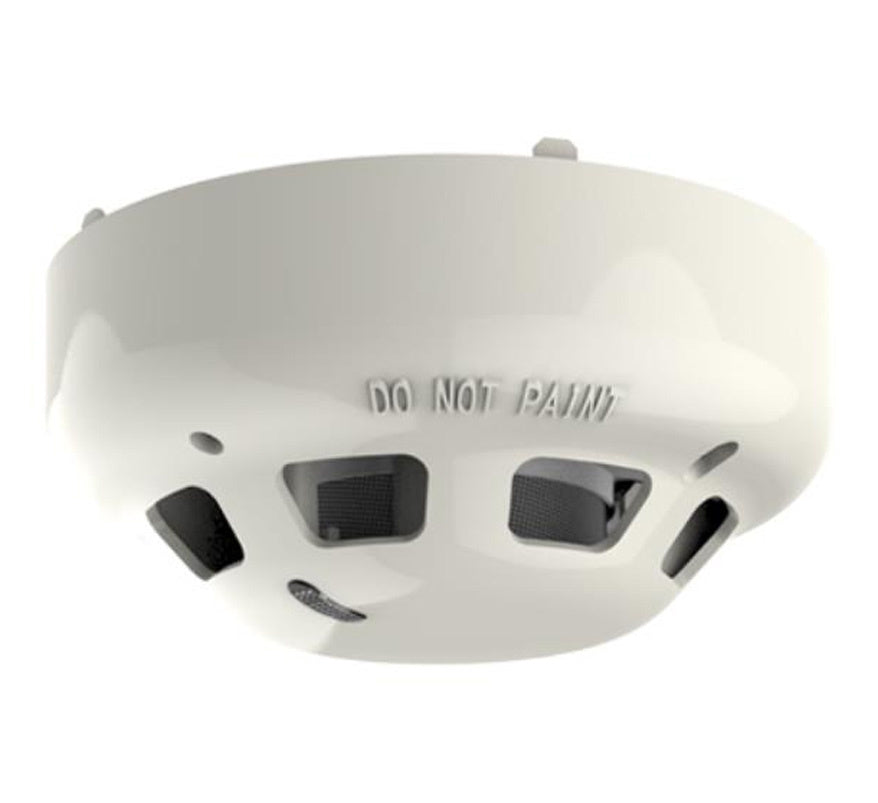

Hochiki CDX Conventional Optical Smoke Detector (Ivory Case) (SOC-E3N)

The Hochiki SOC-E3N is a conventional photoelectric (optical) smoke detector from the Hochiki CDX range, supplied in an ivory case. It is compatible with the majority of existing conventional fire alarm systems. Hochiki's High Performance photoelectric chamber removes the need for ionisation detectors in most applications, and ASWV drift compensation keeps the detector at its optimum sensitivity to help reduce false alarms.

See all Hochiki smoke detectors: ESP addressable, CDX conventional, multi-sensor and specialist models, with a guide to bases and panel compatibility.

Key features

• Ivory case
• Removable High Performance smoke chamber, easy to clean or replace (replacement chamber SLV/ALK)
• Automatic Sensitivity Window Verification (ASWV) drift compensation
• Red LED flashes once every three seconds if the contamination limit is exceeded
• Baffle design lets smoke in while keeping ambient light out
• Single fire LED with 360° viewing
• Remote indicator output
• Low profile design with one-piece outer cover
• Approved by LPCB to EN 54-7

Technical specifications

• Operating voltage: 12-30 V DC
• Quiescent current (typical): 35 µA
• Maximum alarm current: 40 mA
• Remote indicator drive: 20 mA max.
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +60°C
• Maximum humidity: 95% RH, non-condensing (at 40°C)
• Ingress protection: IP42
• Case: ivory ABS
• Dimensions: 100 mm diameter x 38 mm high
• Weight: 95 g (excluding base)
• Compatible bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA
• Base fixing centres: 48-74 mm
• Approvals: LPCB, EN 54-7
