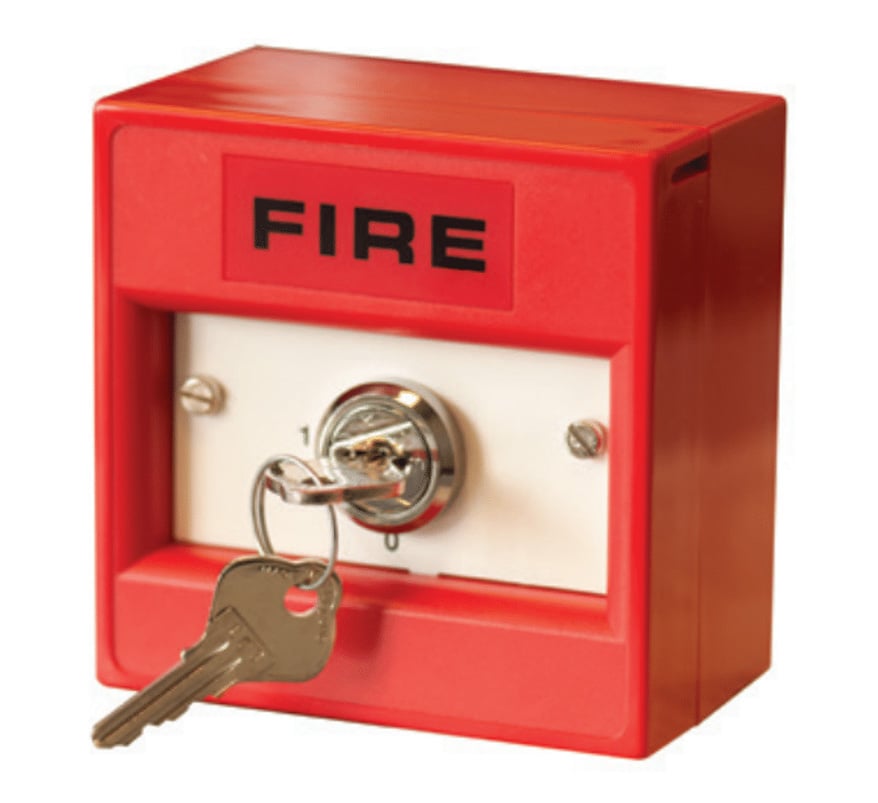

The Hochiki CCP-KS is a conventional key switch manual call point from the CDX range. It is based on the industry-standard KAC 9000 series housing and has flying leads for simple wiring.
The unit has two key positions, marked "1" and "0", and the key can be removed in either position. Hochiki describes it as suitable for fire, security and other specialist applications. It is supplied in red with a back box for surface fixing.
Key features
- Two-position key switch (marked "1" and "0"), key removable in both positions
- Flying leads for simple wiring
- Terminals accept up to 2.5 mm² solid conductor
- Supplied with back box for surface fixing
- Suitable for fire, security and other specialist applications
- Approved to EN54-11:2001
- Approved by LPCB
Technical specifications
- Ordering code: CCP-KS
- IP rating: IP24D
- Operating / storage temperature: -20 °C to +55 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Colour / material: red / ABS
- Weight: 180 g
- Dimensions: W 87 x H 87 x D 52 mm
