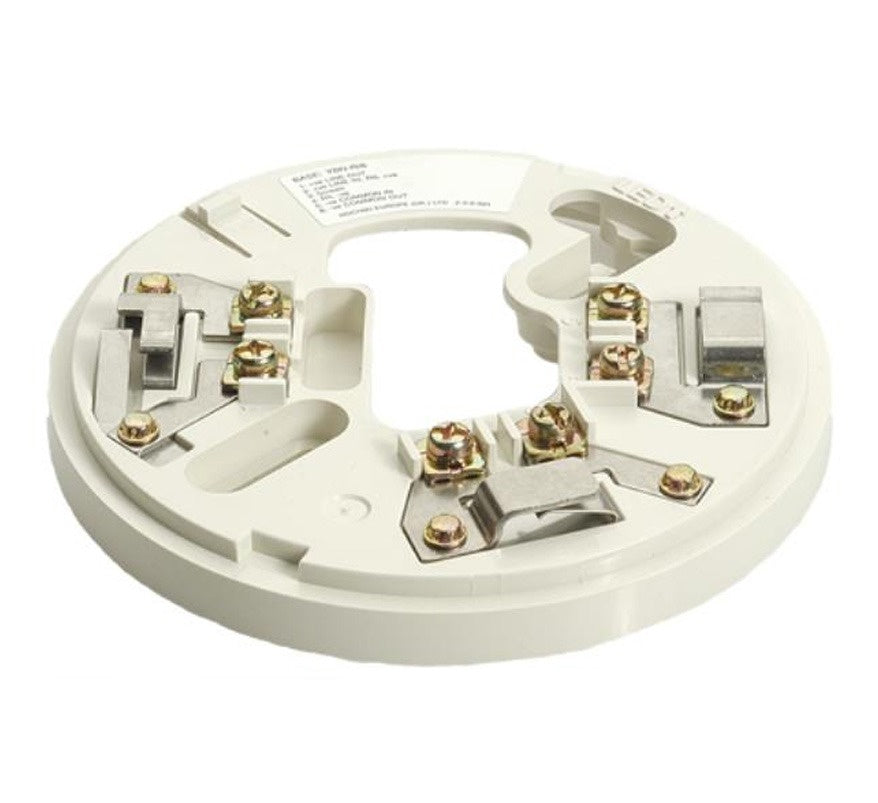

The Hochiki YBN-R/6M is a conventional detector mounting base approved for marine applications by DNV, for the CDX range of marine-approved detectors such as the SOC-E3NM, DCD-AE3M and DRD-EM. It has square cable clamps and an integrated third terminal for a remote indicator output.
The base does not provide line continuity when a detector is removed, so any call points on the zone should be wired first. Hochiki's marine range is based on its ESP and CDX ranges and is approved for marine use by DNV under the EU Marine Equipment Directive (MED), for ships, oil platforms, offshore installations and wind farms.
Key features
- Integral remote indicator output
- Low profile, only 8 mm
- Rugged design
- Electronics free
- Quick connections via square cable clamps
- Accepts 2.5 mm² cables
- Bayonet slot with low insertion force for detectors
- Approved to MED by DNV
Technical specifications
- Ordering code: YBN-R/6M (ivory)
- IP rating: IP42
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Case material: polycarbonate
- Fixing centres: 48 to 74 mm
- Weight: 100 g
- Dimensions: Ø 100 x H 13.7 mm
- Approvals: EN54:2000 Class A1 and A1R, DNV
