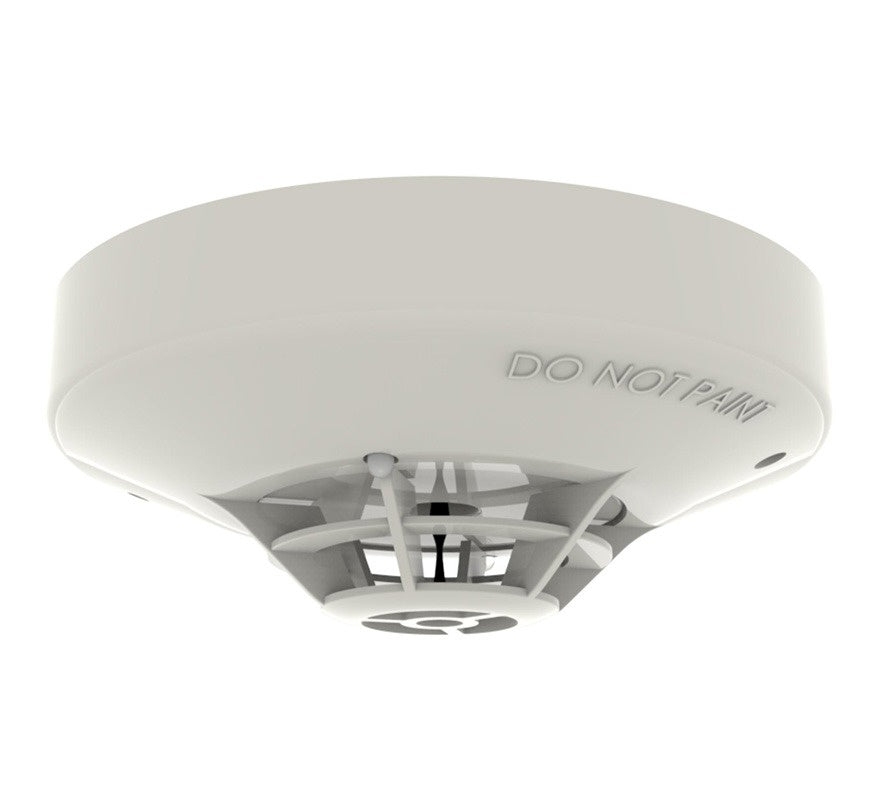

Hochiki Conventional Marine Approved Rate of Rise & Fixed Temp 90°C Heat Detector (DCD-CE3M)

The Hochiki DCD-CE3M is a marine approved conventional heat detector combining rate of rise detection with a 90°C fixed temperature element. It uses a thermistor and linearising circuit to give an accurate linear response, and suits areas where smoke detectors are unsuitable because of steam or cooking fumes, such as kitchens and drying rooms. It is approved for marine use by DNV and fits the YBN-R/6M marine base.

Key features

• Electronic linear heat detection
• Rate of rise plus 90°C fixed temperature element
• Twin fire LEDs for 360° viewing
• Remote indicator output via third terminal
• Wide voltage range (9.5-30 V DC)
• Approved for marine use by DNV

Technical specifications

• Operating voltage: 9.5-30 V DC
• Quiescent current: 35 µA
• Maximum alarm current (typical): 40 mA
• Remote indicator drive: 20 mA max. (9.5-14 mA typ.)
• Ingress protection: IP63
• Maximum humidity: 95% RH, non-condensing (at 40°C)
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +70°C
• Case: ivory polycarbonate
• Dimensions: 100 mm diameter x 38 mm high
• Weight: 76 g
• Compatible base: YBN-R/6M
• Base fixing centres: 48-74 mm
• Approvals: DNV
