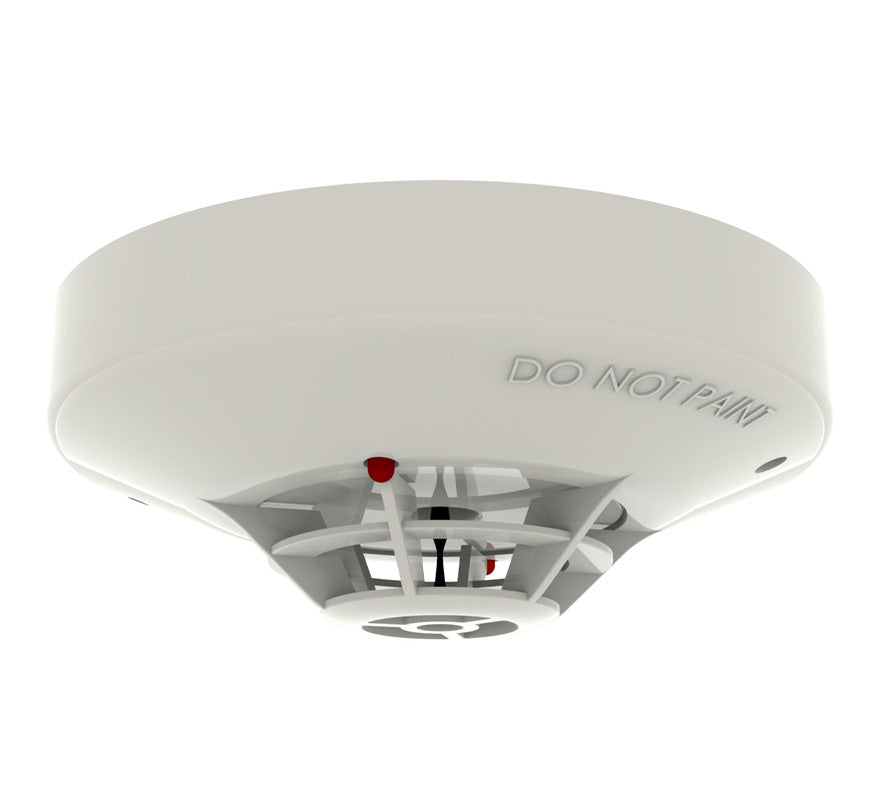

Hochiki DFJ-AE3 Conventional Fixed Temperature Heat Detector 60°C - Ivory Case

The Hochiki DFJ-AE3 is a conventional 60 °C fixed temperature heat detector in an ivory case. It uses a thermistor and linearising circuit to give an accurate linear response, and suits areas where medium ambient temperatures exist or where smoke detectors are unsuitable because of steam or cooking fumes, such as kitchens and drying rooms. It works on the majority of conventional fire alarm systems and fits the Hochiki CDX range of conventional bases; a third terminal provides a remote indicator output.

Key features

• Electronic linear heat detection
• 60 °C fixed temperature detection
• Twin fire LEDs for 360° viewing
• Remote indicator output
• Wide voltage range (9.5-30 V DC)
• Approved by LPCB and VdS

Technical specifications

• Ordering code: DFJ-AE3
• Operating voltage: 9.5-30 V DC
• Quiescent current: 35 µA
• Maximum current in alarm (typical): 40 mA
• Remote indicator drive: 20 mA max. (9.5-14 mA typ.)
• Ingress protection: IP63
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +70 °C
• Case: ivory modified polycarbonate
• Weight: 76 g
• Dimensions: Ø100 x 38 mm (H)
• Compatible bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA
• Base fixing centres: 48-74 mm
• Approvals: EN 54-5:2017 category A1 and A1S; LPCB and VdS (G204046, YBN-R/6SK base only)
