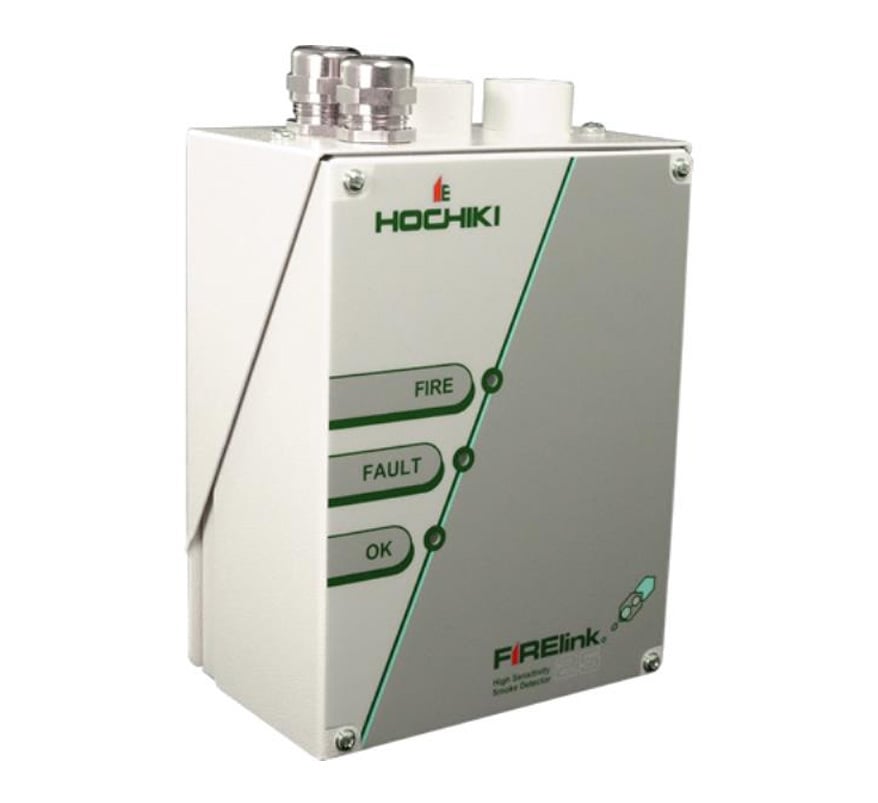

Hochiki FIRELINK-25 1 Pipe Aspirating Smoke Detector with Docking Station

The Hochiki FIRElink-25 is a single-pipe aspirating (air sampling) smoke detector that gives very high sensitivity smoke detection in a small package. Hochiki positions it as the entry-level FIRElink unit for smaller areas up to 250 m², such as small server rooms or retail spaces.

It configures itself to the protected environment without complex set-up, and fits into a docking station that takes all sampling pipes and cables, so the detector can be fitted at final commissioning. Volt-free Fire 1 and Fault relays allow monitoring by a fire panel or BMS, and an optional FL-APIC card connects it to a Hochiki ESP addressable loop. All FIRElink detectors are LPCB approved to EN54-20:2006 Classes A, B and C.

Key features

• Ultra small, low cost aspirating smoke detector for discreet installation
• Laser-based forward light scatter for reliable early warning
• Single sampling pipe up to 50 m (still air)
• Laser dust discrimination to reduce false alarms
• RS485 communications built in for networking and remote communications
• Docking station accepts pipes and cables before the detector is fitted

Technical specifications

• Ordering code: FIRELINK-25
• Current consumption: 250 mA at 24 VDC
• Sampling pipe inlets: 1
• Maximum sampling pipe length: 25 m moving air (>1 m/s) or 50 m still air
• Alarm levels: 2 (Fire and Fault); 2 more with optional relay card or APIC
• Exhaust outlets: 1 (on optional piped exhaust docking station)
• Operating temperature: 0 °C to +38 °C (UL268) / -10 °C to +60 °C (CEA4022)
• Operating humidity: 0 to 90%, non-condensing
• Measurement range: 0.03% to 25% obs/m full scale deflection; sensitivity resolution 0.0015% to 25%
• Detection principle: laser light scattering mass detection and particle evaluation
• Particle sensitivity range: 0.003 µ to 10 µ
• Dust discrimination: 3D3 Laser Dust Discrimination (LDD)
• Sampling pipe diameter: ¾" nominal bore (27 mm O/D)
• Relay contact rating: 500 mA at 30 V
• Supply voltage: 21.6 to 26.4 VDC
• IP rating: IP50
• Weight: 1.7 kg (with docking station)
• Dimensions: H 205 x W 138 x D 84 mm
