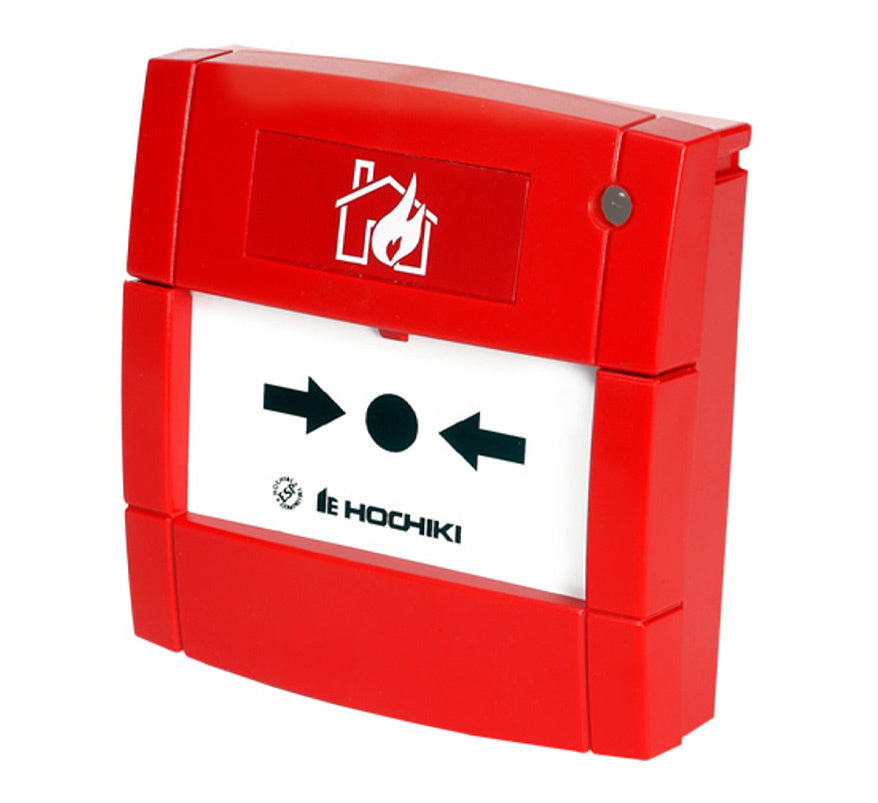

The Hochiki HCP-E(SCI) is an intelligent (analogue addressable) manual call point with integral short circuit isolator, in a red casing. It is fully compatible with Hochiki's ESP analogue addressable protocol and is LPCB approved to EN 54-11 and EN 54-17. A bi-coloured LED shows polling and activation, and turns amber when a short circuit is present.
Key features
- Integral short circuit isolator
- Fast response
- Bi-coloured status LED: red when polling (pulsing/non-pulsing, panel dependent) and when operated; amber when a short circuit is present
- Non-frangible (resettable) element fitted as standard; glass element optional
- Built-in test function initiated by the panel; can also be tested with a test key
- Two terminal blocks for easy loop connection
- Addressed with the TCH-B200 hand-held programmer
- Flush mounting as supplied; surface mounting with the SR MOUNTING BOX (sold separately)
- LPCB approved to EN 54-11 and EN 54-17
Technical specifications
- Protocol: Hochiki ESP
- Operating voltage: 17-41 V DC
- Low power mode: 100 µA typ. (180 µA max.)
- Quiescent current: 250 µA typ. (350 µA max.)
- Alarm current: 5 mA typ. (10.0 mA max.)
- Short circuit threshold (typ.): 430 Ω
- Operating temperature: -10°C to +50°C
- Storage temperature: -30°C to +70°C
- Maximum humidity: 95% RH, non-condensing (at 40°C)
- Ingress protection: IP24
- Case material: modified polyphenylene oxide, red
- Dimensions (W x H x D): 89 x 93 x 27.5 mm; 89 x 93 x 59.5 mm with surface back box
- Weight: 110 g (161 g with surface back box)
- Approvals: LPCB, EN 54-11 and EN 54-17
