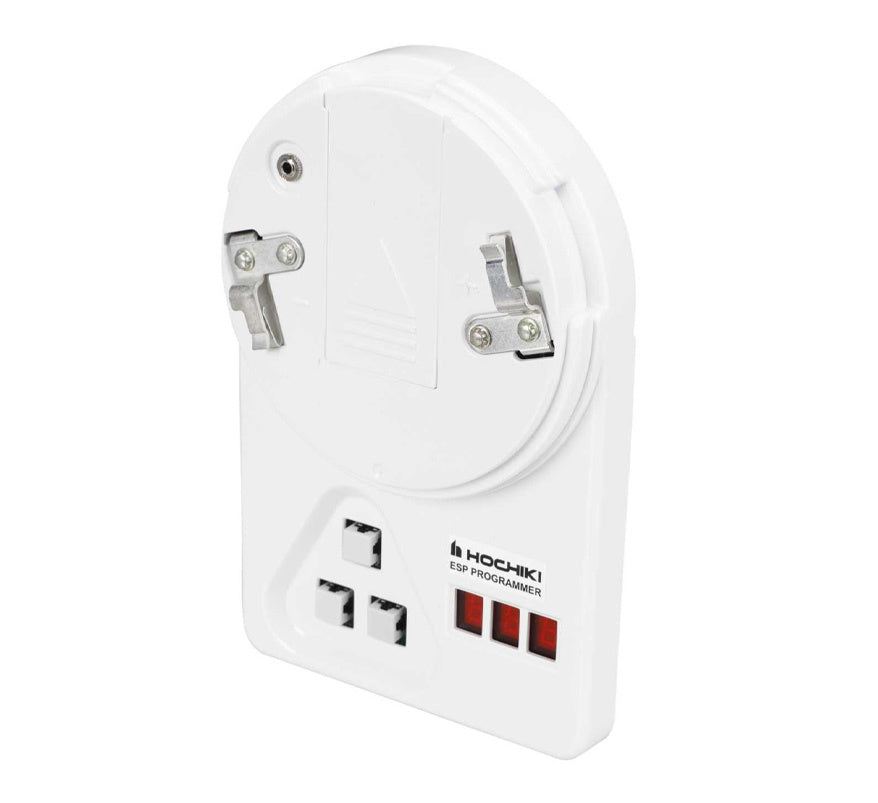

The Hochiki TCH-B200 is a hand held address programmer for the ESP analogue addressable range. It addresses ESP sensors and other addressable devices, such as wall sounders, base sounders, mini modules and manual call points (with the appropriate programming lead).
It is light, robust and easy to use, runs from a single PP3 battery good for up to 8000 operations, and can also display a sensor's analogue value, which Hochiki recommends as a maintenance check on smoke sensors.
Key features
- Lightweight design
- Quick and reliable addressing
- Over 8000 address settings from one battery
- Displays sensor analogue value
- Ability to disable polling of sensors
- Works with the PL-3 lead (square programming terminal, e.g. HCP-E(SCI) call points) and PL-2 lead (crocodile clips, legacy devices)
Technical specifications
- Ordering code: TCH-B200
- Battery: 9 VDC (PP3)
- Operating temperature: -10 °C to +50 °C
- Colour / material: white / ABS
- Weight: 140 g (including battery)
- Dimensions: L 160 x D 30 x W 99.5 mm
- PL-3 lead: 700 mm, 10 g, 3-pin Molex and 2.5 mm jack plug
- PL-2 lead: 660 mm, 15 g, 2 x crocodile clips and 2.5 mm jack plug
