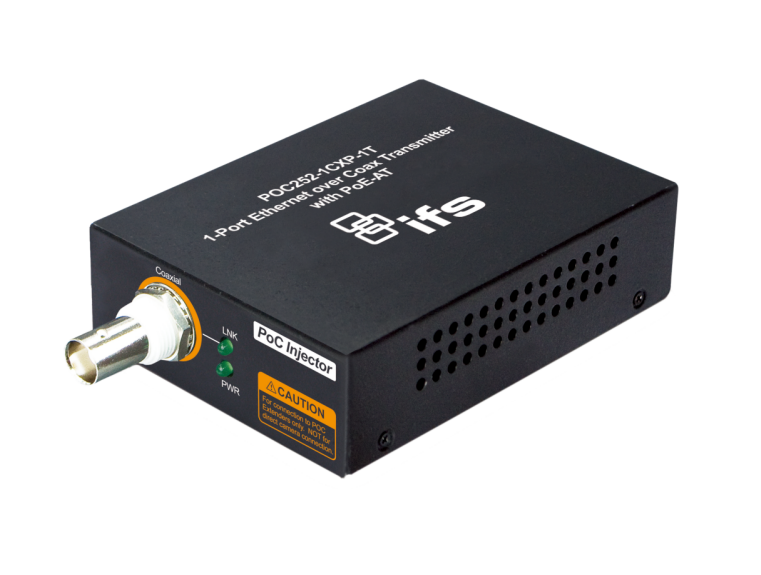

IFSNetworks POC252-1CXP-1T 1-Port IP over Coax Unit (PoE-AT)

The IFS POC252-1CXP-1T is a 1-port Power and IP over Coax media converter for the switch end of a link. It sends Ethernet data and injects PoE-at power over existing coax cable to the POC252-1CX-1P camera-end converter. This lets IP cameras be installed on coax cabling left from an analogue CCTV system, with no local power needed at the camera.

It uses IEEE 1901 Wavelet-OFDM modulation with 128-bit AES encryption, over distances of up to 1km of coax. Up to 3 devices can be daisy-chained on one link.

Key features

• 1 coax (BNC) port with up to 36W power output
• Pairs with the POC252-1CX-1P camera-end media converter
• IEEE 1901 communication standard, Wavelet-OFDM modulation
• 128-bit AES security encryption
• Remote power up to 1km
• Daisy-chain up to 3 devices on one link
• Auto-negotiation and auto MDI/MDI-X
• Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Technical specifications

• Part number: POC252-1CXP-1T
• Ports: 1 x coax (BNC); 1 x RJ45 10/100
• Power input: 52 to 56V DC, or via a PoE-at switch
• PoE power output via coax: max. 30.8W (via PoE switch), 36W (via PSU)
• Power consumption: max. 34W (full PoE load)
• Coax cable: 75 ohm RG-6/U or RG-59/U
• Frequency band: 2 to 28MHz
• Data rate (upload/download, RG-59): 93/93Mbps at 20m; 74/55Mbps at 1000m
• Maximum distance: 200m with PoE+ output; 600m with PoE output; 1,200m data only
• Operating temperature: -10°C to +60°C
• Relative humidity: 0 to 95% non-condensing
• Dimensions: 94 x 70 x 26mm
• Weight: 375g
• Mounting: wall mount
• Standards: IEEE 802.3, 802.3u, 802.3af, 802.3at; FCC Part 15 Class A, CE
