Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
SKU: K407Brand: Kentec Electronics
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
£223.50
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Certified to EN54-4
- Stable, fully regulated, true 24V output under all power conditions, including when running on standby batteries
- Microcontroller-managed, temperature-compensated battery charging to maximise battery life
- Status indicators and monitored fault outputs
- 230V or 110V AC input (link selectable)
- Chassis only; chassis versions have the same mounting points
Frequently bought together
Kentec Electronics
Kentec 5.25 Amp Dual Power Output Supply (Boxed) Syncro Styling - Max 17Ah Batteries (KD2540003)
Sale price£478.15
Out of stock. Lead time 2 to 6 weeks, estimate only
Kentec Electronics
Kentec 5.25 Amp Power Supply (Boxed) Sigma CP/XT Styling - Max 17.2Ah Batteries (K25400M3)
Sale price£497.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Kentec Electronics
Kentec 5.25 Amp Power Supply (Boxed) Syncro Styling - Max 17Ah Batteries (K2540003)
Sale price£359.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Kentec Electronics
Kentec 5.25 Amp Power Supply (Boxed) Syncro Styling - Max 26Ah Batteries (K2540015)
Sale price£461.25
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

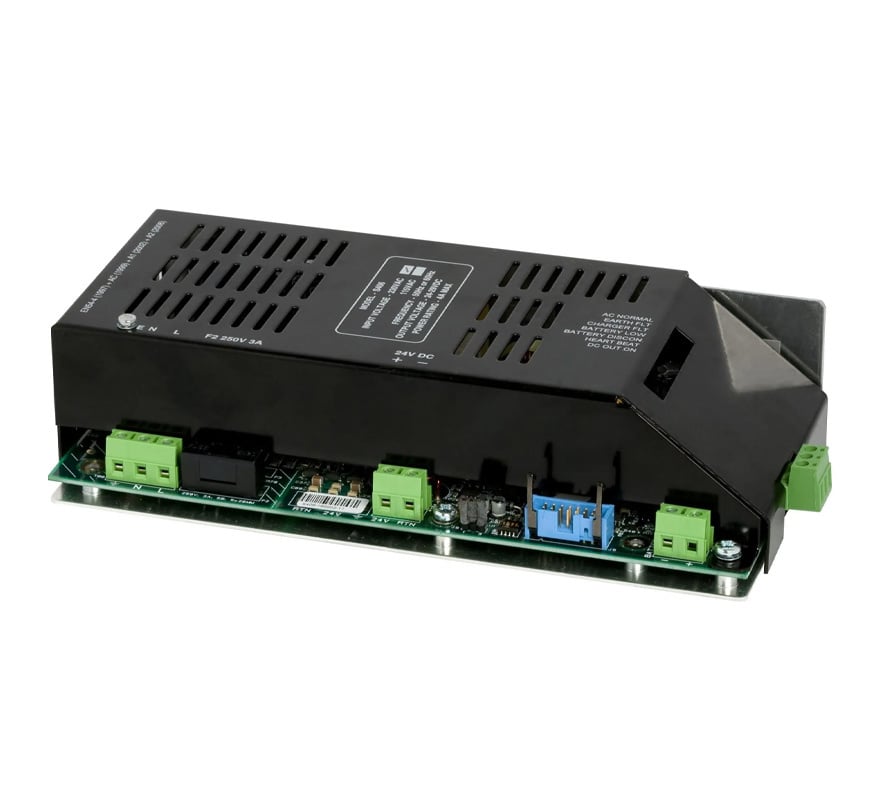

The Kentec K407 is a 2.5A, 24V fire alarm power supply and battery charger from Kentec's Syncro Power range, supplied as a chassis only unit for fitting into a suitable enclosure or as a replacement. Syncro Power supplies are certified to EN54-4 and give a stable, fully regulated, true 24V output for fire alarm system applications. Chassis versions share the same mounting points.
Key features
- Certified to EN54-4
- Stable, fully regulated, true 24V output under all power conditions, including when running on standby batteries
- Microcontroller-managed, temperature-compensated battery charging to maximise battery life
- Status indicators and monitored fault outputs
- 230V or 110V AC input (link selectable)
- Chassis only; chassis versions have the same mounting points
- Can be fitted with an optional dual fused output monitoring module for supplying fire control panels remotely
Technical specifications
- Maximum load current: 2.5A continuous, with a maximum battery charge output of 1.0A
- Mains input: 230V AC 50/60Hz or 110V AC 50/60Hz (link selectable)
- Mains fuse: 250V 3A SB, 5 x 20mm
- Load output voltage: 19-30V DC ±1%
- Maximum ripple: 200mA
- Load fuse: 5A self-resetting polyfuse
- Maximum current draw from batteries: 5A
- Battery charge voltage: 27.4V DC nominal at 20°C (temperature compensated from -5°C to 45°C)
- Deep discharge prevention: battery disconnects at 19V
- Common fault output: normally energised volt-free changeover relay, 30V DC 1A
- Individual fault outputs (battery disconnected, battery low, charger fault, earth fault, mains failed): open collector, 50mA
- Indicators: Power On (green LED), Fault (yellow LED)
- Operating temperature: -5°C to 45°C
