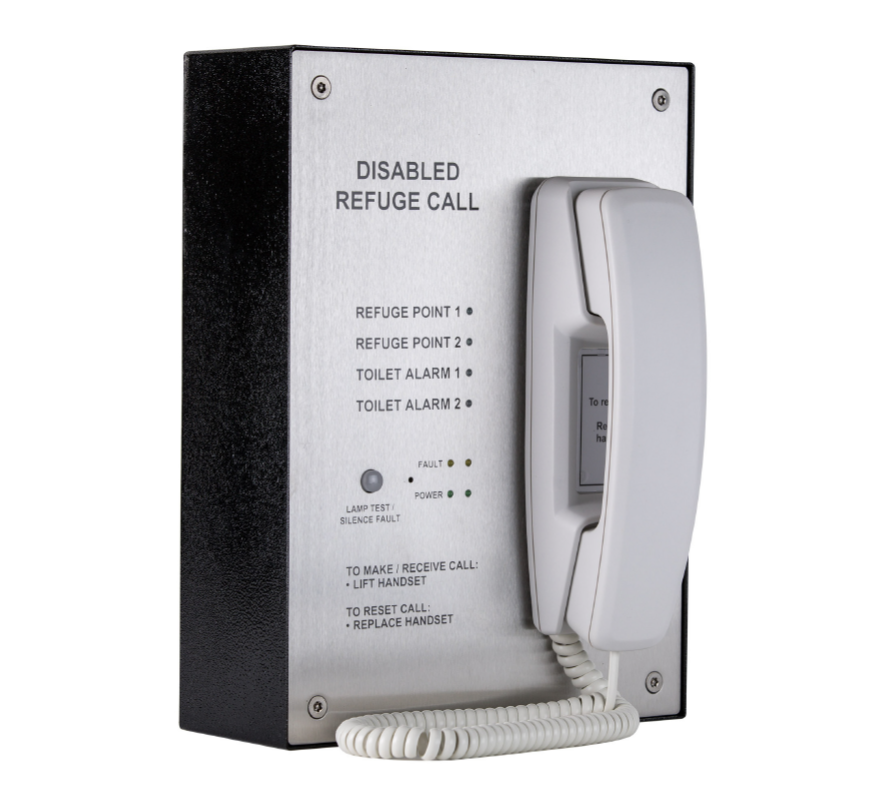

Kentec Safe-Point 2-Way Disabled Refuge Control Panel - Radial Wired - Surface Mounting (K41102SST)

The Kentec Safe-Point K41102SST is a 2-way combined master panel for Safe-Point disabled refuge (emergency voice communication) systems. It has inputs for two Safe-Point call/answer outstations. Using the built-in handset, staff can call out to the refuge outstations and hold a two-way (duplex) voice conversation once connected.

Outstations are wired radially to the panel with 2-core 1.5 mm enhanced fire-rated cable (not supplied). A toilet alarm kit can be wired directly to the panel or in line with a refuge call/answer point. The cabinet has space for 3.2 Ah batteries, giving the 24 + 3 hours standby specified by BS 5839 Part 9. Batteries are not supplied.

Key features

• 2 call/answer outstation inputs, radially wired
• Toilet alarm functionality
• Simple handset operation
• Alarm indicators and internal buzzer; power on and system fault indicators
• Lamp test and buzzer silence push button
• Straightforward 2-wire installation
• Etched-text stainless-steel fascia

Technical specifications

• Product code: K41102SST (surface, radial)
• Enclosure: stainless-steel fascia (brushed), steel back box
• Dimensions: 229 (W) x 312 (H) x 90 (D) mm
• Weight: 3 kg
• Outstation cable: 2-core 1.5 mm enhanced fire-rated (e.g. FP200)
• Standby batteries (not supplied): 2 x 12 V 3.2 Ah sealed lead acid (Yuasa NP3.2-12), 24 + 3 hours standby to BS 5839-9
