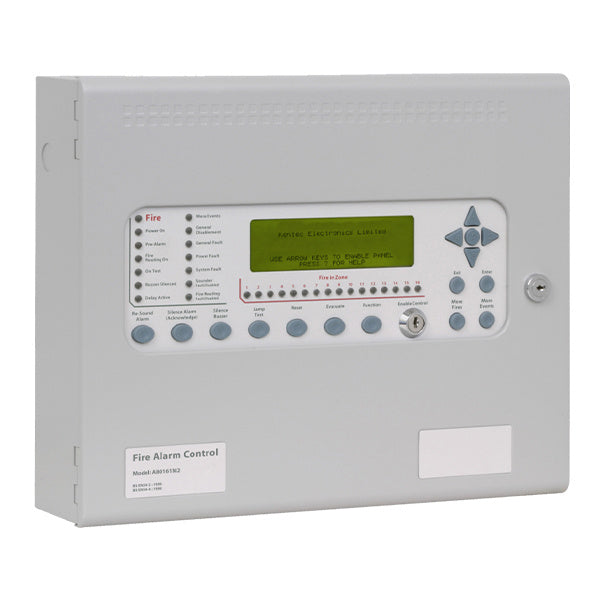

Kentec Syncro AS 1-2 Loop Fire Panel c/w 1 Loop Card + Enable Keyswitch (Apollo Protocol) (A80161M2)

SKU: A80161M2Brand: Kentec Electronics
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub71 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$849.00
1,018.80 inc. VAT849.00 ex VAT
Stock:
In stock (7 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Kentec Syncro AS 1-2 Loop Fire Panel c/w 1 Loop Card + Enable Keyswitch (Apollo Protocol) (A80161M2) $849.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 1 loop, 16 zones, Apollo protocol (S90, XP95, Discovery)
  • Enable control keyswitch fitted
  • Network up to 64 panels (with optional fault tolerant network card K555)
  • 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
  • Up to 512 additional programmable I/O via Syncro I/O modules
  • Powerful, network-wide cause and effects

Frequently bought together

Kentec Syncro AS Controller PCB - Apollo Protocol

Product details

The Kentec Syncro AS A80161M2 is a multi-protocol analogue addressable fire alarm control panel, supplied here in its Apollo protocol version with 1 loop card and an enable control keyswitch. Syncro AS combines compact styling with the programming power and connectivity of much larger systems, and can be networked to become part of a larger system. It is approved and certified to EN54-2 and EN54-4.

Key features

  • 1 loop, 16 zones, Apollo protocol (S90, XP95, Discovery)
  • Enable control keyswitch fitted
  • Network up to 64 panels (with optional fault tolerant network card K555)
  • 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
  • Up to 512 additional programmable I/O via Syncro I/O modules
  • Powerful, network-wide cause and effects
  • Sensitivity adjustment and drift compensation
  • Compatible with Syncro View repeaters
  • Stores the last 500 events in the event log
  • Installer friendly, removable equipment chassis

Technical specifications

  • Loops: 1 fitted (panel expandable from 1 to 2 loops); zones: 16
  • Network: RS485, up to 64 panels via optional fault tolerant network card
  • Mains supply: 110 or 230V AC 50 or 60Hz (default 230V)
  • Mains supply fuse: 1.6A 250V
  • Power supply DC rating: 24V 3A
  • Aux 25V supply: fused at 500mA
  • Batteries: two 12V, 9Ah max (non-networked)
  • Detection loop output: 400mA
  • Sounder outputs: fused at 1A each
  • Fault, fire and alarm contacts: 30V DC 1A
  • Remote inputs (silence, fault, reset, alert, evacuate): switched -ve
  • Display: 8 lines of 40 characters graphic LCD
  • PC and printer ports: serial RS232; serial expansion port: RS485
  • Configuration: via Loop Explorer PC utility (download lead S187 standard or X187LS economy)
  • Dimensions: 385 x 310 x 90mm; weight 6kg
  • Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey
  • IP rating: IP30

Datasheets & documents

Kentec Electronics A80161M2 datasheet (PDF)
