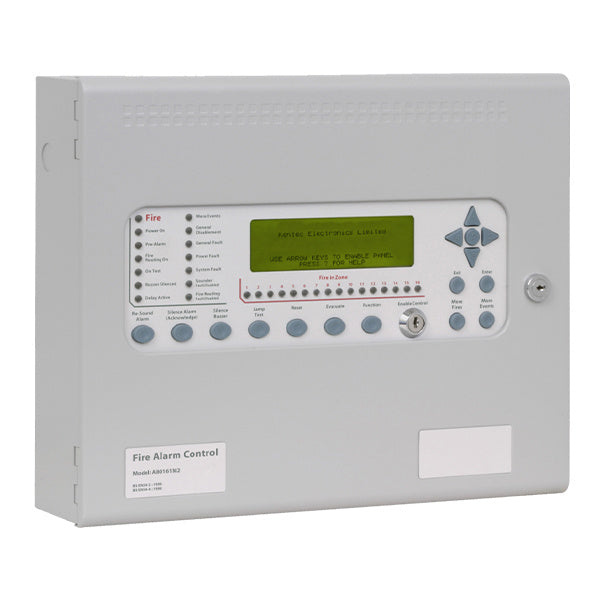

Kentec Syncro AS 1-2 Loop Fire Panel c/w 1 Loop Card + Enable Keyswitch (Hochiki Protocol) (H80161M2)

The Kentec Syncro AS (H80161M2) is an analogue addressable fire alarm control panel supplied with one detection loop, expandable to two loops by fitting an additional loop card. This model is set up for the Hochiki ESP protocol and is fitted with an Enable Controls keyswitch, which gives access level 2 without entering a code. Syncro AS supports a wide range of compatible devices, including optical and ionisation smoke sensors, heat sensors, multi-sensors, switch monitors, sounders, relay modules and bell controllers.

Key features

• Hochiki ESP protocol: up to 127 devices per loop (254 on a two-loop panel)
• Supplied with 1 loop card; expandable to 2 loops
• Enable Controls keyswitch for access level 2
• Up to 800 addresses and sub-addresses per panel, allocated to any of 500 zones across a network
• Cause and effect programming and day/night sensitivity changes
• Configurable from the front panel (including autolearn) or with the Loop Explorer PC configuration software and lead (available separately)
• Two monitored panel sounder circuits, each rated at 1A
• Fire, alarm and fault relays rated 30V DC, 1A
• Remote control inputs and a remote I/O serial bus for optional I/O, relay, sounder and zone boards and Syncro View repeaters
• Networkable: up to 64 panels with an optional network card
• EN 54-2 options with requirements include co-incidence detection, input/output delays and disablement of each address point

Technical specifications

• Protocol: Hochiki ESP
• Loops: 1 fitted, expandable to 2
• Loop current: 400mA maximum per loop
• Mains supply: 230V AC 50Hz, +10% -15% (100W maximum)
• Power supply rating: Imax a 1A, Imax b 2.1A
• Total monitored output load: 2.5A maximum (loop and panel sounders plus auxiliary output)
• Auxiliary 24V output: 300mA maximum load
• Batteries: 2 x 12V sealed lead acid, 7Ah (Yuasa NP7 flame retardant specified)
• Battery charge voltage: 27.6V DC nominal, temperature compensated
• Dimensions: 385 x 310 x 90mm
• Finish: BS 00 A 05 mid grey, fine texture
• Operating environment: -5°C to +35°C, humidity up to 95%
