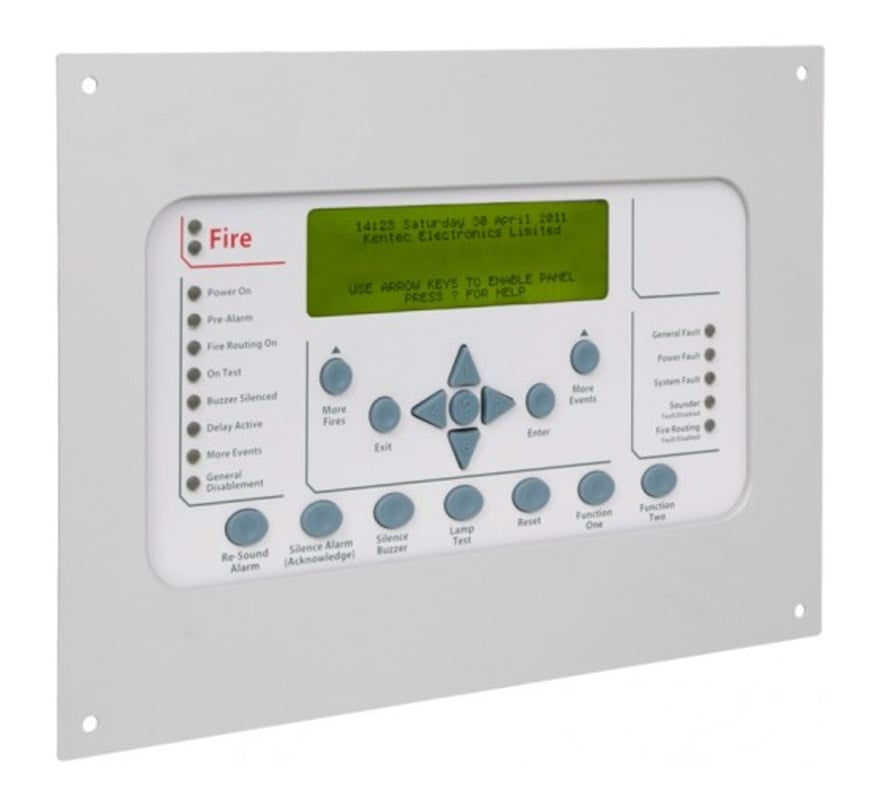

The Kentec Syncro View Marine MK67001AM1 is a 24 V DC local LCD repeater (annunciator) for marine and offshore installations. It extends the controls and indications of the Kentec Syncro ASM fire alarm control panel to other locations. This is the space-saving flat plate fascia model, with an enable control keyswitch.
Up to 15 annunciators can be connected to each Syncro ASM panel on a simple two-wire serial data link. When powered from 2 extra cores of the Syncro ASM panel, up to 4 View Marine repeaters can be connected. With a local ancillary 24 V DC supply, the full 15 can be used. The compact enclosure is styled like the Syncro ASM panel. It suits places where space is limited, such as the bridge or helm, engine rooms, crew quarters and control areas.
Key features
- Large graphic LCD (240 x 64 pixels)
- High-brightness LED indications and internal sounder
- Replicates all Syncro ASM panel controls
- Simple two-wire serial connection
- Up to 15 annunciators per Syncro ASM panel
- Enable control keyswitch fitted
- Space-saving flat plate fascia design
Technical specifications
- Product code: MK67001AM1 (24 V model, flat plate fascia, with enable keyswitch)
- Supply: 21 to 30 V DC (24 V DC model)
- Display: 8 lines of 40 characters graphic LCD
- Serial data: 2-core RS485, up to 1200 m total cable length
- Terminal capacity: 2.5 mm²
