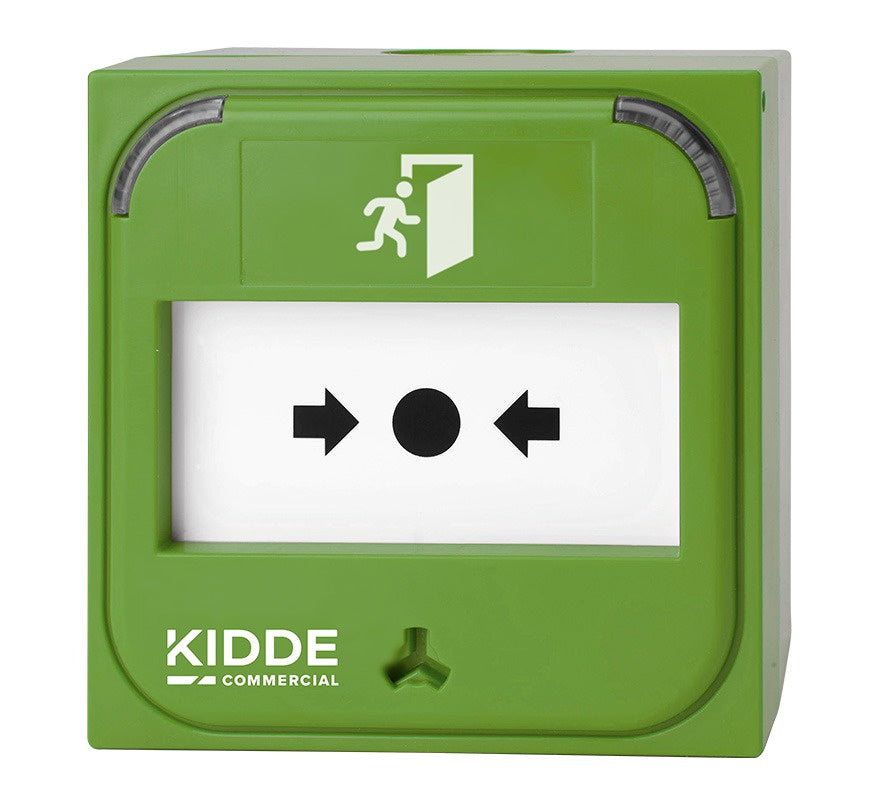

The Kidde KE-DM3010G is a green, single-action intelligent addressable manual call point from the Kidde Excellence Series, marked with a Running Man symbol. It connects to a 2-wire addressable loop and works with Kidde Commercial Excellence Series fire systems and legacy Aritech fire systems. It is supplied with a resettable element, test connector and test key, and suits surface or recessed mounting indoors.
Key features
- Single-action call point for surface or recessed mounting
- Dual tri-colour status LEDs give 180° visibility of alarm, isolated, fault and communication states
- Alarm flag on the front shows activation even without the LEDs
- Tamper-resistant design with resettable element (frangible element option)
- Front-facing test facility; the key also removes the front cover, so no extra tools are needed
- Back box with rear, top and bottom cable entry and a screen connection terminal for electrically noisy installations
- Pluggable connector with link-through for easy installation and pre-commissioning testing
- DIP switch addressing; up to 128 devices per loop
- Standard mounting options for easy retrofitting to existing installations
Technical specifications
- Compatibility: Kidde Excellence and legacy Aritech series fire systems
- Power supply: loop powered, 17 to 29 VDC
- Communication voltage: 4 to 11 V pulsed
- Current consumption: 180 μA quiescent, 2.8 mA alarm
- Cable: 2 cores, 0.404 to 2.05 mm; 4 terminals (A+/A-, B+/B-)
- Response time: less than 3 s
- Dimensions: 87 x 87 x 26 mm (without back box); 87 x 87 x 57 mm (with back box)
- Weight: 110 g (without back box); 170 g (with back box)
- Colour: green (RAL 6024)
- Body material: flame-retardant ABS
- Operating and storage temperature: −25 to +72°C
- Relative humidity: 10 to 95% non-condensing
- Environment: indoor, IP41
- Compliance: CE, REACH, RoHS 3, WEEE
